3 · Optimizing the Whole Trajectory: Direct Collocation and Piccolo
Dynamics defects, hard hardware constraints, minimum time, gauge freedom, and an honest Piccolo result
From shooting to transcription
GRAPE behaves like a shooting method: choose controls, simulate from $t=0$ to $T$, measure the miss at the end, and adjust the controls. The intermediate states are consequences of the control vector, not optimization variables.

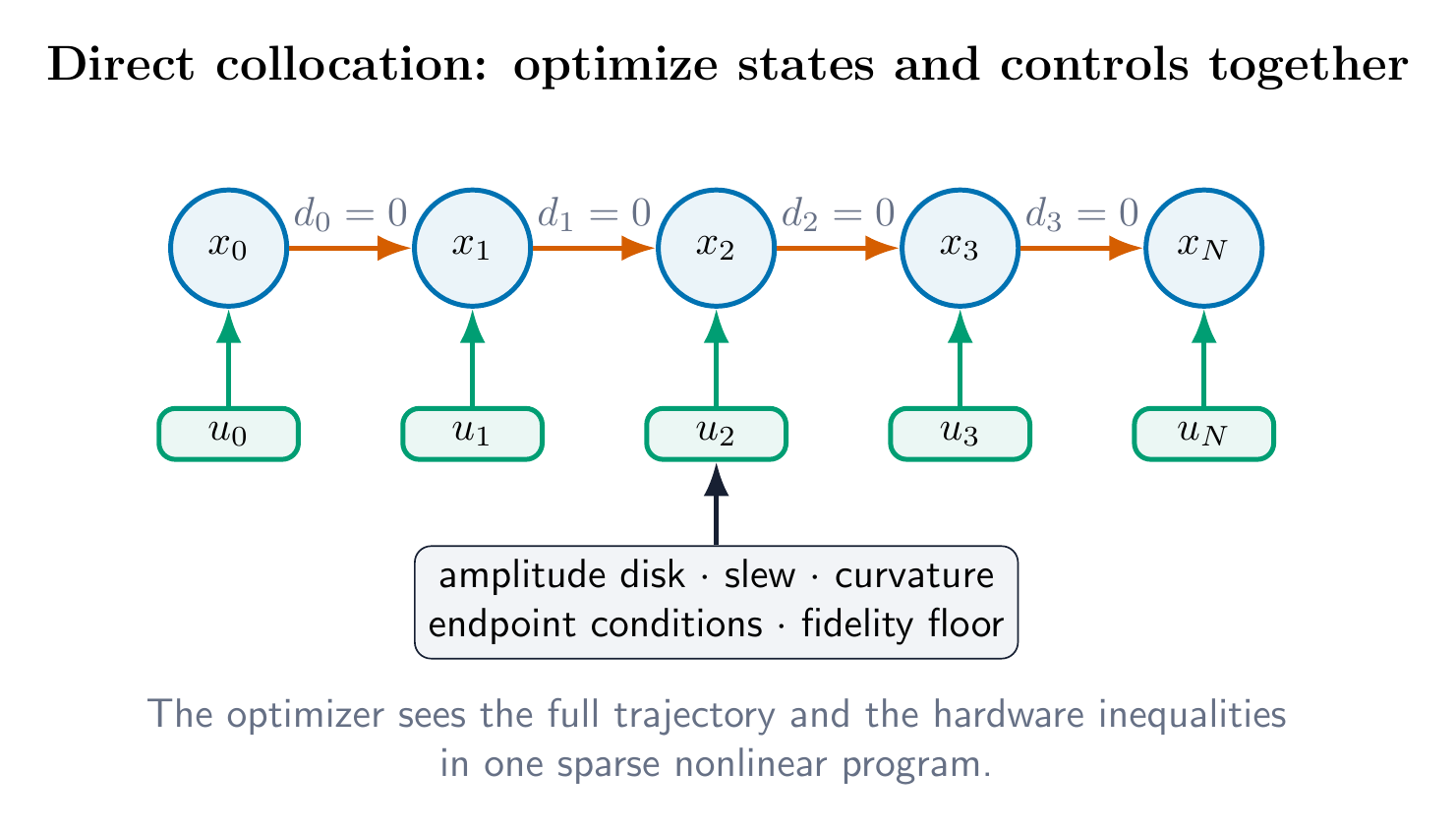

Direct collocation changes the bookkeeping. Choose knot values ${x_k,u_k}_{k=0}^{N}$ together, then require neighboring states to satisfy a discretized dynamics relation. Schematically,
\[\begin{aligned} \min_{\{x_k,u_k\},T}\quad & T + R(u)\\ \text{subject to}\quad & d_k(x_k,x_{k+1},u_k,u_{k+1},\Delta t)=0,\\ & F(x_N)\ge F_{\min},\\ & g(x_k,u_k)\le0. \end{aligned}\]The $d_k$ are defects. A nonlinear-programming solver sees terminal fidelity, duration, dynamics, and hardware inequalities at once
.
This is why tools such as Piccolo are useful. They are not “a better gradient” bolted onto GRAPE. They provide a language for structured trajectories, multiple state and control components, nonlinear dynamics, boundary conditions, path constraints, free time, and sparse derivatives. Once a problem contains all of these, manually assembling the nonlinear program becomes the dominant source of mistakes.
The Jacobian is sparse for a physical reason: defect $d_k$ touches only knots $k$ and $k+1$. A terminal constraint touches the final state; a local amplitude bound touches one control knot. Sparse automatic differentiation and a sparse interior-point solver exploit this banded dependency graph. Transcription does not avoid simulation; it exposes local structure in a form the nonlinear-programming solver can use.
This also changes initialization. A shooting method needs a control guess. Collocation needs a plausible state trajectory as well. The workflow first solves an easier fixed-duration or lower-fidelity problem, then uses that state/control history to warm start a harder fidelity floor and minimum-time solve. Continuation in duration, interaction strength, or constraint tightness is often more valuable than switching optimizers.
A three-knot transcription
The mechanism is easiest to see on an intentionally tiny mesh. Let $x_0$ be fixed by the initial quantum state and let $x_1,x_2$ and controls $u_0,u_1$ be decision variables. A forward-Euler illustration would impose
\[\begin{aligned} d_0 &= x_1-x_0-\Delta t\,f(x_0,u_0)=0,\\ d_1 &= x_2-x_1-\Delta t\,f(x_1,u_1)=0. \end{aligned}\]The actual quantum transcription uses a more accurate propagator defect, but the dependency pattern is the same. Changing $x_1$ affects only $d_0$ and $d_1$; changing $u_0$ affects only $d_0$. The terminal fidelity depends on $x_2$. This local coupling is why the Jacobian and the second-derivative approximations have a narrow sparse structure.
At the first nonlinear-programming iteration, the guessed $x_1$ need not equal the state obtained by simulating $u_0$. The mismatch appears as a nonzero defect. The solver moves states and controls together to reduce defects while improving the objective and obeying inequalities. At convergence, a small defect residual means the knots satisfy the chosen discrete dynamics. It does not yet prove that the continuous Schrödinger equation between knots follows the same path; that is the role of refinement and independent rollout.
Free duration can be handled by a normalized coordinate $\tau=t/T$. Then $dx/d\tau=T f(x,u)$ and the interval size in physical time depends on $T$. This scaling must appear in dynamics, slew, curvature, and accumulated costs. Treating $T$ as a label while leaving a fixed $\Delta t$ in one of those expressions would optimize an internally inconsistent problem.
Defects and constraints
For linear-in-state quantum dynamics, a defect can be built from an approximation to the propagator over one interval. This transcription uses midpoint controls and a Padé $(3,3)$ rational approximation. A lower-order Padé $(2,2)$ approximation looked adequate in simpler tests but was inaccurate here because the interaction phase per step was not tiny: $V\Delta t\approx0.55$.
That is a subtle collocation failure mode. The optimizer can satisfy the discrete defects extremely well while the continuous equation follows a different trajectory. Every candidate is therefore replayed with an independent matrix-exponential rollout. The reported $F_{\mathrm{rollout}}$, rather than only the NLP’s $F_{\mathrm{discrete}}$, is the final check.
The constrained trajectory imposes:
- the circular amplitude bound $\Omega_x^2+\Omega_y^2\le\Omega_{\max}^2$;
- zero control at both endpoints;
- a slew limit of $148$ rad/µs²;
- a curvature limit of $1739$ rad/µs³;
- a hard lower bound on terminal CZ fidelity; and
- free final time in the minimum-time runs.
These are natural inequality and boundary constraints in collocation. In a conventional GRAPE implementation they would require projections, penalties, filtering, or a reparameterization—and each choice changes the landscape.
On a uniform mesh, the path constraints become explicit algebra:
\[\begin{aligned} \Omega_{x,k}^2+\Omega_{y,k}^2 &\le \Omega_{\max}^2,\\ \|u_{k+1}-u_k\|_2 &\le s_{\max}\Delta t,\\ \|u_{k+1}-2u_k+u_{k-1}\|_2 &\le c_{\max}\Delta t^2,\\ u_0=u_N&=0. \end{aligned}\]The factors of $\Delta t$ matter when final time is free. Omitting them changes the physical slew or curvature bound whenever the optimizer changes $T$. Penalties are not equivalent to these inequalities: a penalty permits violation in exchange for objective improvement, whereas a hard constraint defines the feasible set.
Each inequality removes a different kind of unphysical shortcut. The amplitude disk limits instantaneous optical power and, unlike independent component boxes, constrains the magnitude of the complex envelope directly. A slew limit restricts how far that envelope can move during one unit of physical time. A curvature limit restricts how abruptly the slew itself can change, discouraging sharp corners even when the first difference remains legal. Endpoint constraints reserve time to turn the field on and off rather than allowing a discontinuity at the gate boundary.
These constraints should be interpreted on the variables they actually bind. Bounding the optimizer samples does not guarantee that a cubic interpolant remains inside the amplitude disk between knots. Bounding finite differences does not by itself impose the frequency response of an acousto-optic modulator. Conversely, a device transfer function may smooth a waveform without satisfying the same mathematical curvature bound. The purpose of the collocation constraints is to define a controlled intermediate model, not to claim that one mesh has already captured the complete optical chain.

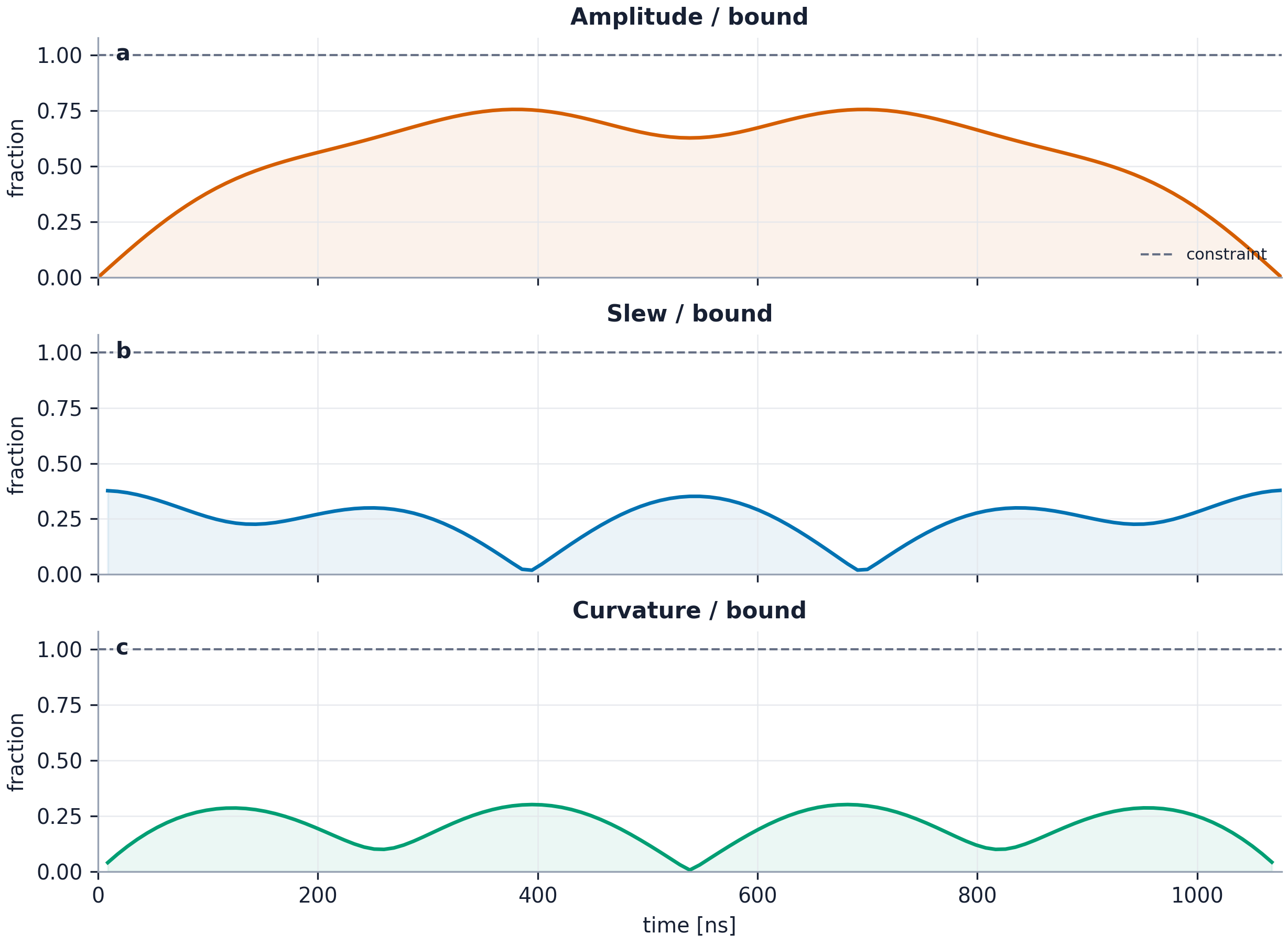

The active-constraint plot helps diagnose which requirement sets the solution. A ratio near one means the trajectory is using nearly all of that resource. Here amplitude is close to active over part of the gate, while the saved slew and curvature ratios retain more margin. If a minimum-time solution never approaches any path bound, duration may be limited instead by the quantum dynamics or by the terminal fidelity condition. If many constraints are active simultaneously, small changes in their numerical values can move the optimum appreciably and continuation becomes especially useful.
What the nonlinear solver sees
An interior-point solver does not reason in terms of lasers or Rydberg atoms. It sees a large vector of real decision variables, a scalar objective, equality residuals, and inequality residuals. Barrier terms keep iterates away from forbidden inequality boundaries while Newton-like linear systems couple primal variables and constraint multipliers. Sparse derivatives make those systems tractable; poor scaling can make them appear singular even when the physics is well posed.
Scaling deserves explicit design. State amplitudes are naturally order one, controls are tens of rad/µs, curvature bounds may be thousands of rad/µs³, and infidelity can be $10^{-4}$ or smaller. Feeding these raw magnitudes into one system can cause the solver to emphasize some residuals merely because their numbers are larger. Normalizing controls and time, or assigning constraint scales, improves numerical conditioning without changing the physical feasible set.
Solver status is evidence, not a verdict. “Optimal” means the discretized first-order conditions meet configured tolerances. “Maximum iterations” may still leave a useful feasible candidate, while “infeasible” may indicate a poor initialization or a genuinely empty constraint set. The handoff should record terminal score, maximum defect, maximum path violation, complementarity or stationarity diagnostics, and independent rollout. Reporting only the solver’s final word hides the information needed to reproduce or challenge the result.
Constraint multipliers can be scientifically informative. A large multiplier on the fidelity floor estimates how much the objective would improve if that floor were relaxed slightly; a large amplitude multiplier marks intervals where more optical authority would reduce time. These are local sensitivities, not global design laws, but they help decide whether the next experiment should change a hardware bound, refine the mesh, or search from another seed.
Mesh feasibility is still not continuous-time feasibility. Linear interpolation can overshoot a nonlinear derived quantity between knots, and an approximate defect can hide integration error. The audit therefore checks endpoint values, discrete inequalities, Hamiltonian Hermiticity, and a separate piecewise rollout. Mesh refinement should stabilize both the objective and the independently propagated gate.
Discrete success versus physical success
There are three residuals worth separating. The nonlinear-programming residual measures how well the decision variables satisfy the chosen defects and constraints. The rollout discrepancy measures how far a trusted integrator lands from the optimized terminal state when driven by the saved controls. The model discrepancy measures how far either trajectory is from the real system. Tightening the solver tolerance addresses only the first. Raising the Padé order or refining the mesh addresses the second. Improving calibration and the Hamiltonian addresses the third.
The observed $V\Delta t\approx0.55$ explains why propagator accuracy matters here. The interaction generates an appreciable phase within one mesh interval. A low-order defect can be smooth and differentiable enough for the optimizer to exploit while still accumulating a biased phase across many intervals. An independent exponential rollout is valuable precisely because it shares the Hamiltonian but not the rational approximation used inside the nonlinear program.
Warm starts should also be validated rather than trusted. A state guess constructed by rolling out the initial controls begins dynamically consistent, which usually reduces early defect work. After changing duration or interaction strength, resampling the old trajectory may introduce defects; it is still useful, but the solver must repair them. Continuation can follow one local family past several fidelity floors, so multiple seeds or reverse continuation provide a check that a surprisingly favorable point is not only an artifact of one path through parameter space.
The reduced CZ trajectory
The full two-qutrit gate propagator has 81 complex entries. Global exchange symmetry and the specific target mean we do not need all of them. The reduced formulation follows the driven amplitudes needed to reconstruct the computational action: two amplitudes for a single-excitation block and three for the symmetric double-excitation block. Splitting real and imaginary parts gives ten real state variables per knot.
Reduction is powerful, but it must preserve the target’s phases. A good reduced state is not merely one that reproduces populations. It must contain every observable needed to distinguish the desired gate from a gauge-equivalent-looking impostor.
What Piccolo adds
Piccolo.jl packages quantum trajectory optimization around this transcription viewpoint
. Its abstractions can represent ket, unitary, and multi-component trajectories; objectives and constraints are assembled around a direct collocation solve. QuantumCollocation.jl’s development was folded into Piccolo, so the relevant question is not whether the old repository name survives—it is whether the current trajectory and objective encode the physical target.
The earlier discussion of this CZ formulation is preserved in the QuantumCollocation issue tracker
We tested Piccolo v1.19.0 on progressively reduced versions of this problem. The results are deliberately reported as a tool study, not edited into a success story:
| Piccolo formulation | Outcome |
|---|---|
| raw 9-level unitary, 61 knots | stopped after more than 30 minutes |
| reduced 5-level CZ | fast, but gauge-blind; physical gate fidelity about 0.79 |
| phase-anchored 6-level CZ | correct objective, about 22 s/iteration; about 0.63 after 300 unconverged iterations |
| Bell-state ket trajectory | $F_{\mathrm{rollout}}=0.999992$ in about 1.005 µs |
The Bell result demonstrates that the installed Piccolo stack and trajectory machinery work on this neutral-atom Hamiltonian. It does not demonstrate a converged Piccolo CZ.
That distinction separates software capability from objective correctness. A trajectory package can provide state representations, automatic differentiation, defect templates, constraint composition, solver interfaces, and visualization. Those facilities reduce the amount of custom numerical plumbing and make it easier to state coupled trajectory problems. They cannot infer that a diagonal gate must preserve a particular invariant phase if the supplied terminal objective never asks for it.
The Bell-state test is useful because its terminal question is narrower: does one chosen input reach one chosen target ket up to a global phase? A full gate test asks for the correct action on an entire computational subspace, including relative phases among columns. Success on state transfer confirms dynamics and optimization machinery, but it does not validate a gate objective. This hierarchy of tests is healthy: begin with a single trajectory, then add phase references and basis columns, and independently score the full map after each increase in abstraction.
CasADi/IPOPT and Piccolo occupy different layers in this comparison. CasADi supplies symbolic expressions, sparse derivatives, and a general nonlinear-programming backend; the lower-level formulation assembles the reduced quantum defects and constraints explicitly. Piccolo supplies quantum trajectory types and higher-level objective/constraint abstractions before invoking its optimization stack. The latter can reduce formulation code, especially for multiple coupled trajectories, but abstraction does not remove the need to inspect the physical terminal map.
| Question | GRAPE-style loop | Direct collocation / Piccolo-style trajectory |
|---|---|---|
| state history | generated by each simulation | explicit decision variables |
| dynamics | satisfied by the chosen integrator | sparse defect constraints |
| path limits | projection, penalty, filter, or parameterization | algebraic inequalities at knots |
| free duration | outer loop or rescaled dynamics | variable with consistently scaled constraints |
| failure signal | poor terminal objective or bad rollout | infeasibility, residuals, or bad independent rollout |
Neither column is universally better. A waveform search is compact and often fast when only terminal fidelity matters. A trajectory formulation earns its complexity when state-dependent constraints, free time, multiple models, or hardware inequalities are central to the question.

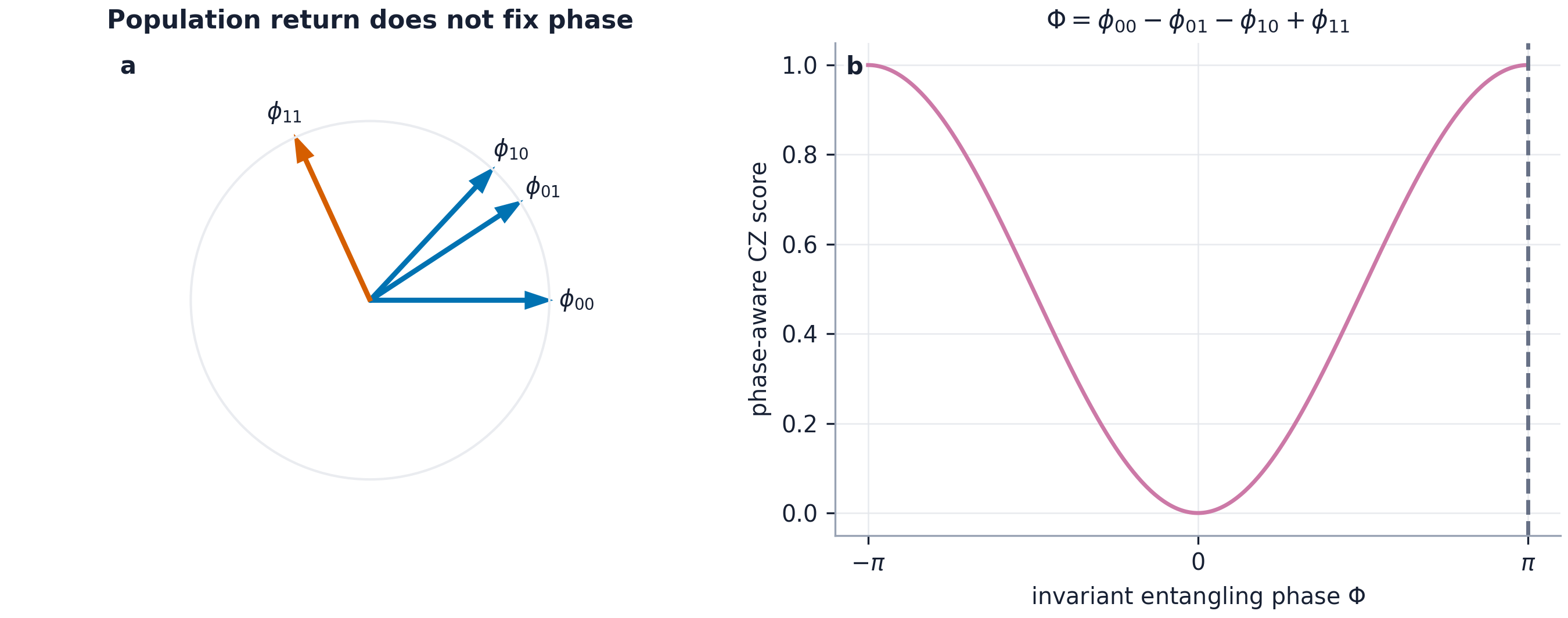

The gauge-hole experiment
Why did the fast five-level reduction fail? Suppose the reduced state checks the single-excitation return amplitude and a double-excitation amplitude but omits one phase reference. The optimizer can make all observed magnitudes and selected phase differences look correct while changing the invariant entangling phase
\[\phi_{\mathrm{ent}}=\arg U_{11}-\arg U_{10}-\arg U_{01}+\arg U_{00}.\]A local $Z$ correction changes individual phases but not this combination. The target requires $\phi_{\mathrm{ent}}=\pi$ modulo $2\pi$. If the reduced objective cannot reconstruct it, an apparent optimum need not be a CZ-coset point.
Adding the missing phase anchor repairs the functional. It also makes the optimization heavier. That trade is unavoidable: a fast objective that cannot distinguish success from failure is not an approximation to the problem.
Following the phases by hand
For a diagonal two-qubit operation, local phase corrections transform the basis phases in a structured way:
| basis state | original phase | after equal local $Z(\theta)$ corrections |
|---|---|---|
| $\lvert00\rangle$ | $\phi_{00}$ | $\phi_{00}$ |
| $\lvert01\rangle$ | $\phi_{01}$ | $\phi_{01}+\theta$ |
| $\lvert10\rangle$ | $\phi_{10}$ | $\phi_{10}+\theta$ |
| $\lvert11\rangle$ | $\phi_{11}$ | $\phi_{11}+2\theta$ |
Substituting the corrected phases into $\Phi=\phi_{00}-\phi_{01}-\phi_{10}+\phi_{11}$ cancels both copies of $\theta$. A global phase cancels for the same reason. Thus $\Phi$ labels information that neither global nor allowed local rephasing can repair.
As a concrete example, phases $(0,0,0,\pi)$ give $\Phi=\pi$ and represent CZ. Phases $(0,\pi/3,\pi/3,2\pi/3)$ give $\Phi=0$: every basis state may return with unit population, and the single-excitation phases even look symmetric, but the operation is locally equivalent to a nonentangling diagonal gate. An objective observing only return magnitudes and the equality $\phi_{01}=\phi_{10}$ cannot distinguish these cases.
A phase anchor adds one complex reference or an equivalent invariant constraint so that the reduced variables reconstruct $\Phi$. That extra information couples terminal conditions that were previously independent and can worsen optimization conditioning. The increased cost is evidence that the corrected problem is richer, not a reason to prefer the faster gauge-blind answer.
For a diagonal computational action, the invariant is transparent. A common global phase cancels, and equal local phases on the atoms shift the four basis phases in a pattern that also cancels from $\Phi$. The CZ coset requires $\Phi=\pi$ modulo $2\pi$. A reduced trajectory that records only return magnitudes, or anchors too few complex amplitudes, leaves $\Phi$ free. The optimizer then uses that unpenalized direction because it makes the remaining constraints easier.
Results and limits
The constrained minimum-time solutions are:
| Fidelity floor | Duration | Independent rollout |
|---|---|---|
| 0.99 | 1041.6 ns | 0.99009 |
| 0.999 | 1068.8 ns | 0.99903 |
| 0.9999 | 1076.9 ns | 0.99991 |
These gates are slower than the 605.7 ns ideal-blockade reference and the 683.2 ns analytic pulse. That is expected: finite blockade, zero endpoints, slew, curvature, and a hard rollout-validated fidelity floor define a stricter problem. “Slower” is not solver failure when the feasible sets are different.

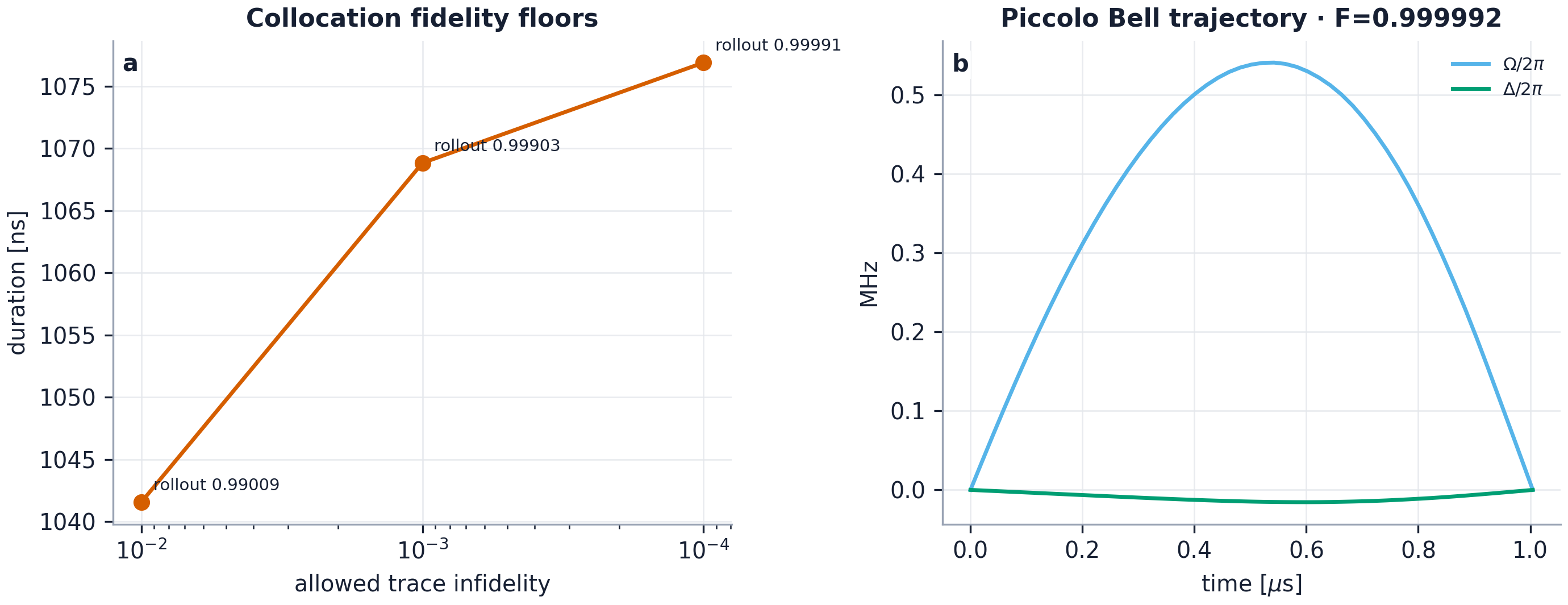

The left panel also shows an important practical pattern: increasing the requested fidelity by two nines costs only about 35 ns within this constrained family. The dominant time is spent entering and leaving the admissible pulse smoothly, not polishing the last decimal in an unconstrained landscape.
“Minimum time” is local to this transcription, initialization, mesh, and constraint set. It is not a proof of a global quantum speed limit. The sound comparison is between independently rolled-out feasible points under the same constraints. The 605.7 ns Jandura–Pupillo solution remains the ideal-blockade reference; this experiment answers a stricter finite-blockade, zero-endpoint, slew- and curvature-limited question.
A stronger minimum-time claim would require systematic mesh refinement, multiple seeds, consistent constraint scaling, and evidence that further continuation does not find a shorter feasible branch. Even then it would be numerical evidence for the stated model, not an analytic bound. The value of the present frontier is more modest and more useful: it quantifies the duration cost of a particular set of physical constraints and supplies fully rolled-out candidates for the subsequent noise comparison. It also leaves a reproducible baseline against which a different mesh, objective, or trajectory package can be compared without silently changing the scientific question.
Laboratory note
The episode answers the broader “why a trajectory tool?” question with a qualification. Piccolo makes rich formulations easier to express, but no library can decide which phases define the user’s gate. Modeling and validation remain part of optimal control.
The next chapter changes the dynamics again. Once dissipation enters, “coherent infidelity” is no longer the quantity that ranks the pulses we already found.
