2 · Three Traditional Routes: GRAPE, Krotov, and CRAB
Forward-backward gradients, sequential updates, randomized bases, and what their pulse shapes reveal
One problem, three search spaces
Part 1 gave us a finite-blockade Hamiltonian, a phase-aware CZ objective, and an analytic baseline. Here we hold the physical model fixed and change the language in which a pulse is searched. That distinction is more useful than sorting methods into “old” and “new.” GRAPE, Krotov, and CRAB can all solve quantum-control problems, but they expose different variables to the optimizer and handle hardware structure differently.
For the main comparison, GRAPE and Krotov use $T=1\,\mu\mathrm s$ and 100 constant time slices. CRAB dresses the 683.2 ns analytic pulse with eight basis coefficients. The Rabi quadratures obey a component box $\lvert\Omega_x\rvert,\lvert\Omega_y\rvert\le\Omega_{\max}/\sqrt2$; detuning is fixed at zero for GRAPE and Krotov, while the CRAB seed retains its constant analytic detuning. These differences are stated because the final infidelities are not a controlled software benchmark.
| Method | Search variables | Derivative | Natural strength | Typical difficulty |
|---|---|---|---|---|
| GRAPE | every time-slice amplitude | exact/discrete gradient | large flexible control space | jagged pulses and local optima |
| Krotov | time-local field updates | forward/backward states | monotonic theory under assumptions | clipping can break the guarantee |
| CRAB | a few basis coefficients | often derivative-free | compact, bandwidth-aware ansatz | misses solutions outside the basis |
GRAPE
For piecewise-constant controls,
\[U(T)=U_{N-1}\cdots U_1U_0,\qquad U_k=\exp[-iH(u_k)\Delta t].\]Naively differentiating the whole product once per parameter would be expensive. GRAPE stores forward products $X_k=U_{k-1}\cdots U_0$ and backward products carrying the terminal objective. A gradient component becomes a local contraction,
\[\frac{\partial F}{\partial u_{j,k}} \propto \operatorname{Re}\operatorname{tr} \left(\Lambda_{k+1}^\dagger\frac{\partial U_k}{\partial u_{j,k}}X_k\right).\]The Fréchet derivative of the matrix exponential supplies $\partial U_k/\partial u_{j,k}$ exactly for the discretized dynamics. One forward and one backward sweep therefore evaluate all slice gradients
.
The word “exact” refers to the piecewise-constant discretization, not to continuous hardware. If $A_k=-iH(u_k)\Delta t$ and $E_{j,k}=-i(\partial H/\partial u_j)\Delta t$, then
\[\begin{aligned} D\exp(A_k)[E_{j,k}] &=\int_0^1 e^{(1-s)A_k}E_{j,k}e^{sA_k}\,ds,\\ \exp\!\begin{pmatrix}A_k&E_{j,k}\\0&A_k\end{pmatrix} &=\begin{pmatrix}e^{A_k}&D\exp(A_k)[E_{j,k}]\\0&e^{A_k}\end{pmatrix}. \end{aligned}\]The block-exponential identity provides a stable Fréchet derivative instead of replacing it with the first-order approximation $-i\Delta t(\partial H/\partial u_j)U_k$. The latter is acceptable only when relevant commutators are negligible. At finite blockade, $V\Delta t$ is one of the scales that decides whether that approximation is trustworthy.
Forward products $X_k$ and backward products $\Lambda_k$ turn a naively quadratic repropagation cost into two sweeps plus local contractions. The terminal phase $\theta$ is reoptimized for the CZ coset; at a smooth maximizer, Danskin’s theorem allows the control derivative to hold the selected $\theta$ fixed. A finite-difference spot check is still essential because a conjugation or product-order error can produce a plausible but wrong gradient.
One slice, worked through
Take three propagators, $U=U_2U_1U_0$, and vary only the first quadrature on the middle slice. The product rule gives
\[\frac{\partial U}{\partial\Omega_{x,1}} =U_2\,D\exp(A_1)[E_{x,1}]\,U_0.\]Everything before the varied slice is the forward object $X_1=U_0$; everything after it is absorbed into the backward object constructed from $U_2$ and the terminal derivative. For 100 slices the pattern is identical. Each derivative inserts one local Fréchet block between a cached prefix and suffix, so the cost grows roughly linearly with the number of slices rather than requiring a complete new rollout for every parameter.
The gradient is only as good as its convention. If time products are ordered from right to left, the cached prefix must use that same order. If the complex drive is defined as $\Omega_x+i\Omega_y$, the $y$ generator must carry the matching signs. If controls are stored in rad/µs but plotted in MHz, the optimizer derivative is taken with respect to the stored angular quantity, not the displayed value. A robust implementation compares a few random directional derivatives against centered finite differences before launching a long search.
Once the gradient is available, GRAPE does not prescribe one universal outer optimizer. Plain ascent, conjugate gradients, quasi-Newton updates, or constrained optimizers can all use it. Step selection and initialization influence which local optimum is reached. The name therefore identifies an efficient derivative construction more than a single complete optimization algorithm.
The GRAPE search found a $1\,\mu\mathrm s$ pulse whose coherent trace infidelity was below the saved artifact’s numerical reporting threshold. That is an optimizer success, not yet a physical-gate claim: the pulse has sharp changes, uses no slew constraint, and has not been priced for decoherence.
Krotov
Krotov’s method also propagates states forward and adjoint states backward, but it updates the field sequentially while constructing the next trajectory. Under the method’s functional assumptions and update rule, each iteration can be made monotonic
. That property is appealing when an optimizer’s occasional bad step is costly.
The qualifier matters. This implementation enforces the amplitude box by clipping. Clipping is an external projection, not the unconstrained Krotov update for which the monotonic proof was derived. The recorded $1\,\mu\mathrm s$ pulse reaches $1.65\times10^{-3}$ infidelity, but its many saturated slices also say that the update wants to leave the admissible set.
This is a recurring control lesson: an algorithmic theorem applies to a mathematical formulation, not automatically to every practical modification of its implementation.
In its usual first-order form, the Krotov field update has the schematic structure
\[u^{(i+1)}(t)=u^{(i)}(t) +\frac{S(t)}{\lambda_a} \operatorname{Im}\!\left\langle \chi^{(i)}(t)\middle| \frac{\partial H}{\partial u} \middle|\psi^{(i+1)}(t) \right\rangle .\]The old costate is paired with the newly propagated state. Monotonicity depends on the functional’s convexity or suitable second-order terms, the sign and magnitude of the step parameter $\lambda_a$, the shape function $S(t)$, consistent propagation, and the absence of an incompatible post-update operation. Hard clipping can improve feasibility while breaking the proof because the clipped field is no longer the stationary update of the stated functional. Constrained variants exist; the point is that the practical rule must match the theorem being invoked.
What “sequential” means
A Krotov iteration first propagates the current control forward and uses the terminal objective to initialize costates, which are stored while moving backward. It then starts a new forward propagation. At each time, the new state already reflects the controls updated at earlier times in the same iteration, while the costate comes from the previous iteration. The new control value is computed from that mixed pair and used immediately. GRAPE, by contrast, normally forms the gradient of one complete old trajectory and then updates all slices together.
This temporal ordering is part of the monotonic construction. So are the running cost that penalizes changes from the reference field and the envelope $S(t)$ that suppresses updates near endpoints. If the Hamiltonian depends nonlinearly on the field or the terminal functional is not in the assumed class, second-order terms may be required. Monotonicity also says only that the chosen functional does not worsen from one iteration to the next; it does not promise convergence to the global optimum or to a pulse that satisfies an unstated bandwidth limit.
The saturated Krotov trace on this page can therefore be read diagnostically. Long runs at a box edge say that the unconstrained update has more authority than the allowed field. Alternating signs say that independent time samples can still express rapid changes. Neither pattern should be hidden by smoothing before analysis. A hardware-aware rerun would need a constraint-compatible update, a filtered parameterization, or a model that includes the transfer function during optimization.
CRAB
CRAB replaces $N$ independent slice values by a chopped basis,
\[u(t)=u_0(t)+S(t)\sum_{m=1}^{M} \left[a_m\sin(\omega_m t)+b_m\cos(\omega_m t)\right],\]where $u_0$ is a seed, $S(t)$ can impose endpoint behavior, and the frequencies are usually randomized around a useful scale. A derivative-free method then searches the small coefficient vector
The reduced dimension can be a feature rather than a compromise. It regularizes the pulse and can encode bandwidth before optimization begins. It can also be a cage: if the needed correction is not represented by the selected modes, no amount of coefficient search will find it.
dCRAB reduces that particular risk by changing the randomized basis after a search stagnates. Each “super-iteration” opens new directions while retaining the current pulse as a seed. It can escape an artificial false trap created by one finite basis, but it does not turn the method into a dense time-grid search: the spectrum, envelope, and number of modes still define what can be expressed at each stage.
A bandwidth example
Suppose a 700 ns pulse is expanded in four sinusoidal frequencies near integer multiples of $1/T$. The coefficient vector may have only eight real entries, yet each coefficient changes the control over the entire gate. Low modes bend the broad envelope; higher modes add smaller-scale corrections. Choosing $S(t)=\sin^2(\pi t/T)$ automatically turns those corrections off at both endpoints, a behavior that would otherwise require extra constraints on a slice grid.
That compactness also exposes the main risk. If finite blockade requires a correction on a time scale shorter than the highest chosen period, the basis cannot express it. A derivative-free optimizer may report convergence because it has exhausted its coefficient space, even though a better waveform exists outside that space. Randomizing the frequencies reduces systematic alignment with a poor harmonic grid; changing them in a dCRAB super-iteration supplies new directions after stagnation.
CRAB is sometimes described as “bandwidth limited,” but the precise statement depends on the basis and on how the final waveform is synthesized. A finite trigonometric expansion has bounded spectral support in the mathematical model. Endpoint envelopes multiply that expansion and broaden its spectrum, while discretization and device interpolation can add further content. The honest workflow is therefore the same as for a grid pulse: construct the emitted or filtered waveform and rescore that waveform in the dynamical model.
With only eight parameters dressing the analytic pulse, the CRAB search reaches $2.74\times10^{-4}$ infidelity at 683.2 ns. That is worse than the coherent GRAPE number but more than sixty times better than the undressed finite-blockade baseline, at the shorter analytic duration.
Reading the pulses
The pulse plot is as informative as the scalar objective. GRAPE uses its freedom to build a structured but high-bandwidth pattern. Krotov spends many slices on the component limits. CRAB remains smooth within each analytic segment and preserves the central phase jump. The algorithms have not discovered three approximations to one canonical waveform; they have found three different routes through the same unitary dynamics.

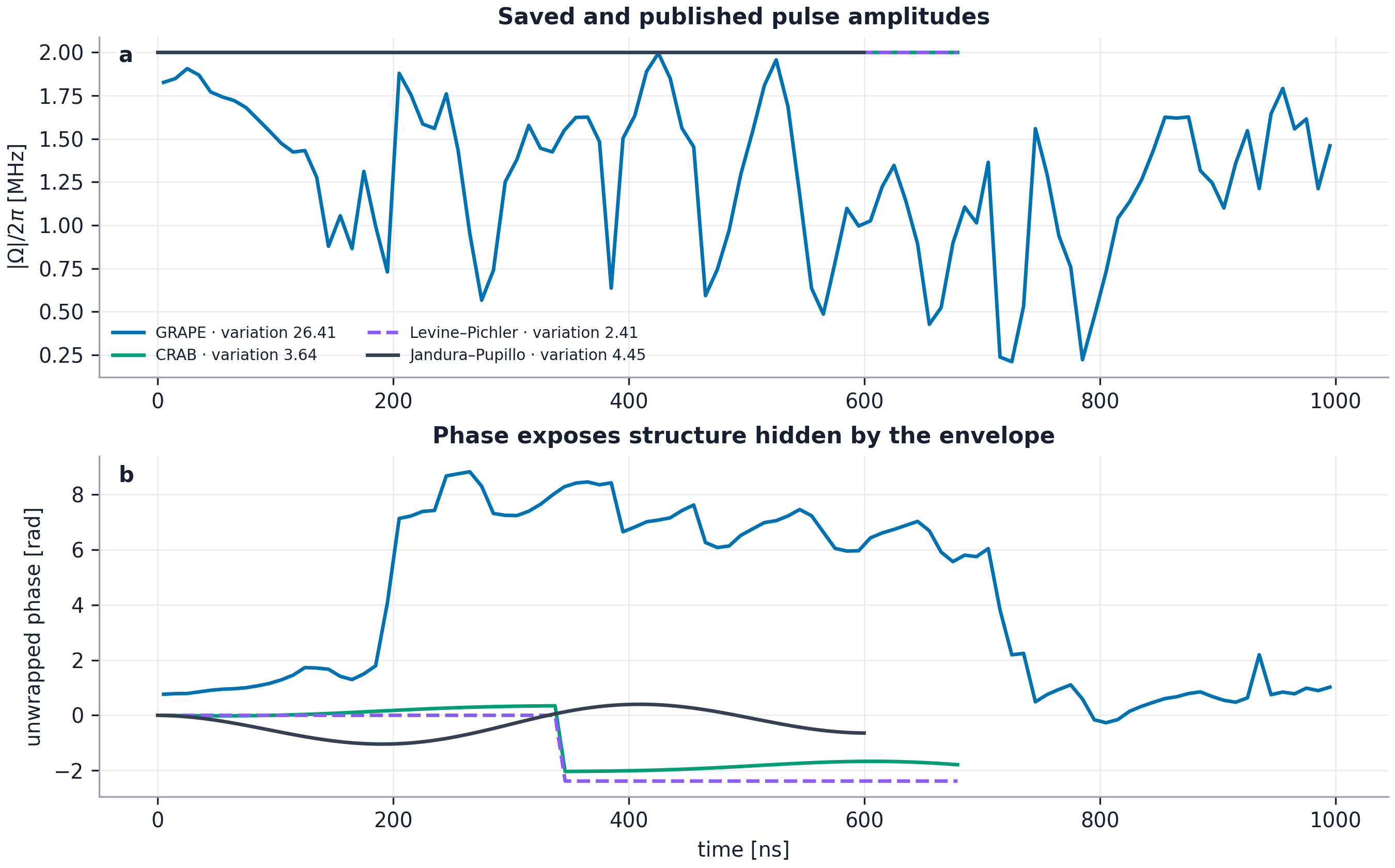

The phase representation also matters. Plotting only $\lvert\Omega\rvert=\sqrt{\Omega_x^2+\Omega_y^2}$ would hide quadrature sign and phase jumps. For that reason every pulse figure in this series shows $\Omega_x$, $\Omega_y$, and $\Delta$, or explicitly states when the phase is fixed.

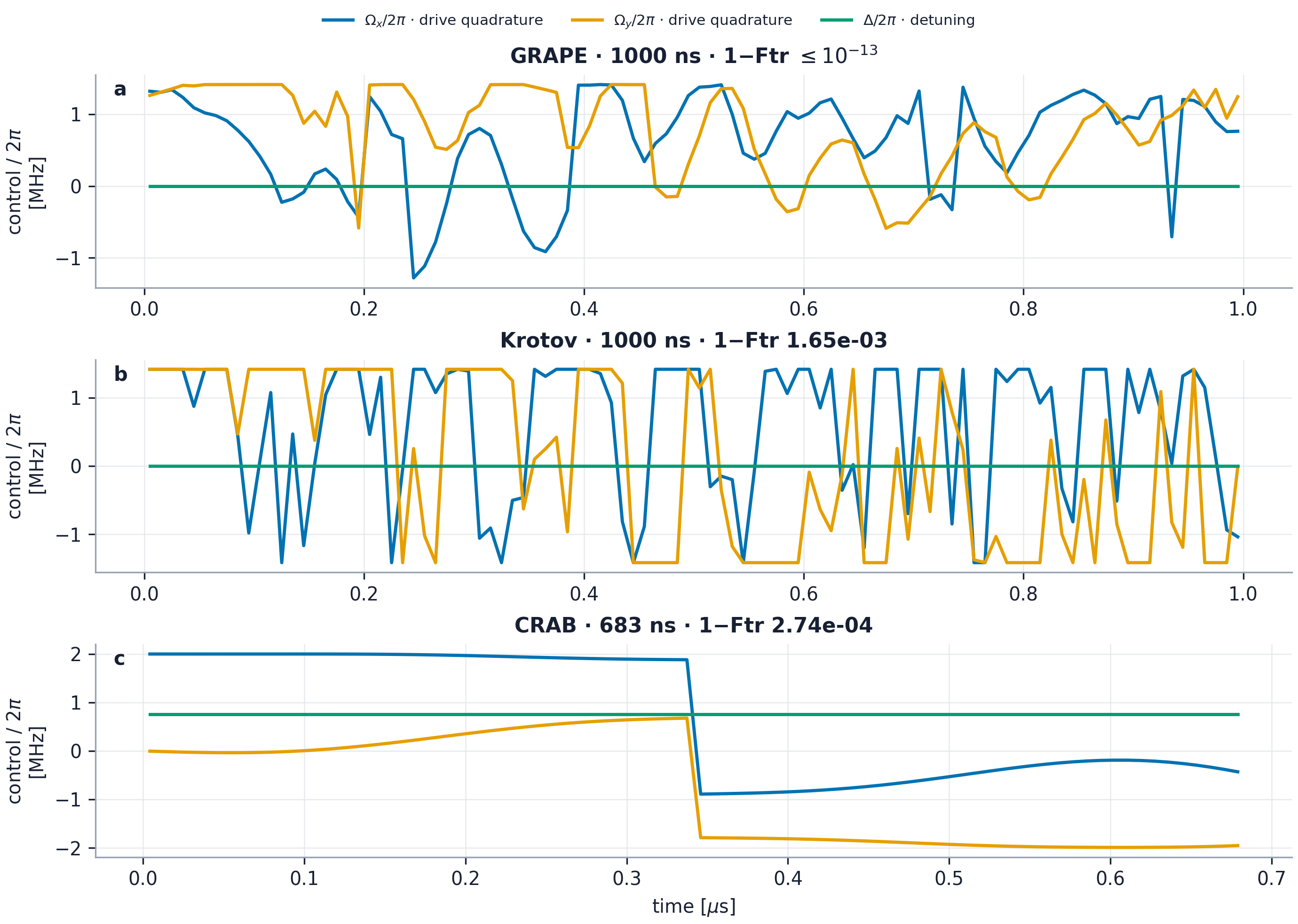

How to read the three panels
Begin with color rather than method name. Blue and orange are the two Cartesian components of one complex Rabi drive. Where one component crosses zero, the drive has not necessarily turned off: the other component may still carry nearly the full amplitude. Green is a different control, the detuning. In the GRAPE and Krotov panels it lies at zero by construction; that flat line records a fixed choice, not missing data. In the CRAB panel it retains the nonzero value inherited from the analytic seed.
Next compare the radius $\sqrt{\Omega_x^2+\Omega_y^2}$ with the component boxes. GRAPE and Krotov were bounded separately in each quadrature. A long flat segment in one color therefore indicates saturation of that component, while simultaneous saturation would correspond to the edge of the larger square allowed in the quadrature plane. CRAB instead moves along a low-dimensional curve determined by its basis coefficients and seed.
Then look at time scale. A sign reversal between adjacent 10 ns slices is a high-frequency request even if both values satisfy the amplitude bound. The optimizer was charged no cost for such a reversal, so rapid changes are free mathematical resources. The plot connects slice centers to make the sequence visible; it should not be interpreted as a claim that a laser emits those straight segments. The actual zero-order hold, interpolation, and analog response belong to the hardware model in Part 5.
Finally compare shape with score. The GRAPE trace has the best recorded closed-system objective and substantial fine structure. Krotov is even rougher yet ends at a worse local solution under the clipped update. CRAB is smoother and shorter but retains a larger coherent error. No single ordering follows until one decides whether the scarce resource is coherent infidelity, gate time, bandwidth, robustness, or Rydberg exposure. That is why the later noise comparison can reverse the apparent ranking.
The jaggedness is not a plotting artifact and has not been smoothed in this draft. A simple, reproducible diagnostic is the quadrature-plane total variation
\[\mathcal R= \frac{1}{\Omega_{\max}} \sum_{k=0}^{N-2} \left(|\Omega_{x,k+1}-\Omega_{x,k}| +|\Omega_{y,k+1}-\Omega_{y,k}|\right).\]For the saved arrays, $\mathcal R=26.41$ for GRAPE, $73.49$ for Krotov, $3.64$ for CRAB, and $2.41$ for the analytic two-segment representation. GRAPE and Krotov were each given independent slice variables, amplitude boxes, and no slew, curvature, or bandwidth constraint. Their irregularity is therefore an honest feature of the optimization problem. A later transfer function may smooth it, but that would be a different emitted pulse and must be rescored.
The Jandura–Pupillo reference
Jandura and Pupillo ask how quickly globally driven neutral atoms can realize two- and three-qubit entangling gates when Rydberg blockade is ideal or very strong. Rather than choosing a convenient duration and minimizing error, they treat duration itself as the quantity to be minimized. Their numerical quantum-speed-limit analysis identifies short gate families and shows that a two-qubit CZ can be expressed with the drive held at its maximum amplitude while only its optical phase varies
. This is a particularly useful counterexample to the idea that a fast gate must look jagged on a time grid.
The published waveform data
This comparison is deliberately asymmetric. Mapping $\Omega_{\max}=2\pi\times2$ MHz turns the published normalized duration into about 606 ns, but its Hamiltonian limit and parameterization differ from the finite-blockade comparison. It would be misleading to place its infidelity beside the finite-blockade rows and declare a solver winner. What it does establish is more useful: a high-fidelity time-optimal solution can live in a smooth, constant-amplitude, phase-only language. The jagged grid-optimized pulses are a consequence of those saved formulations, not a fundamental requirement of fast CZ control.

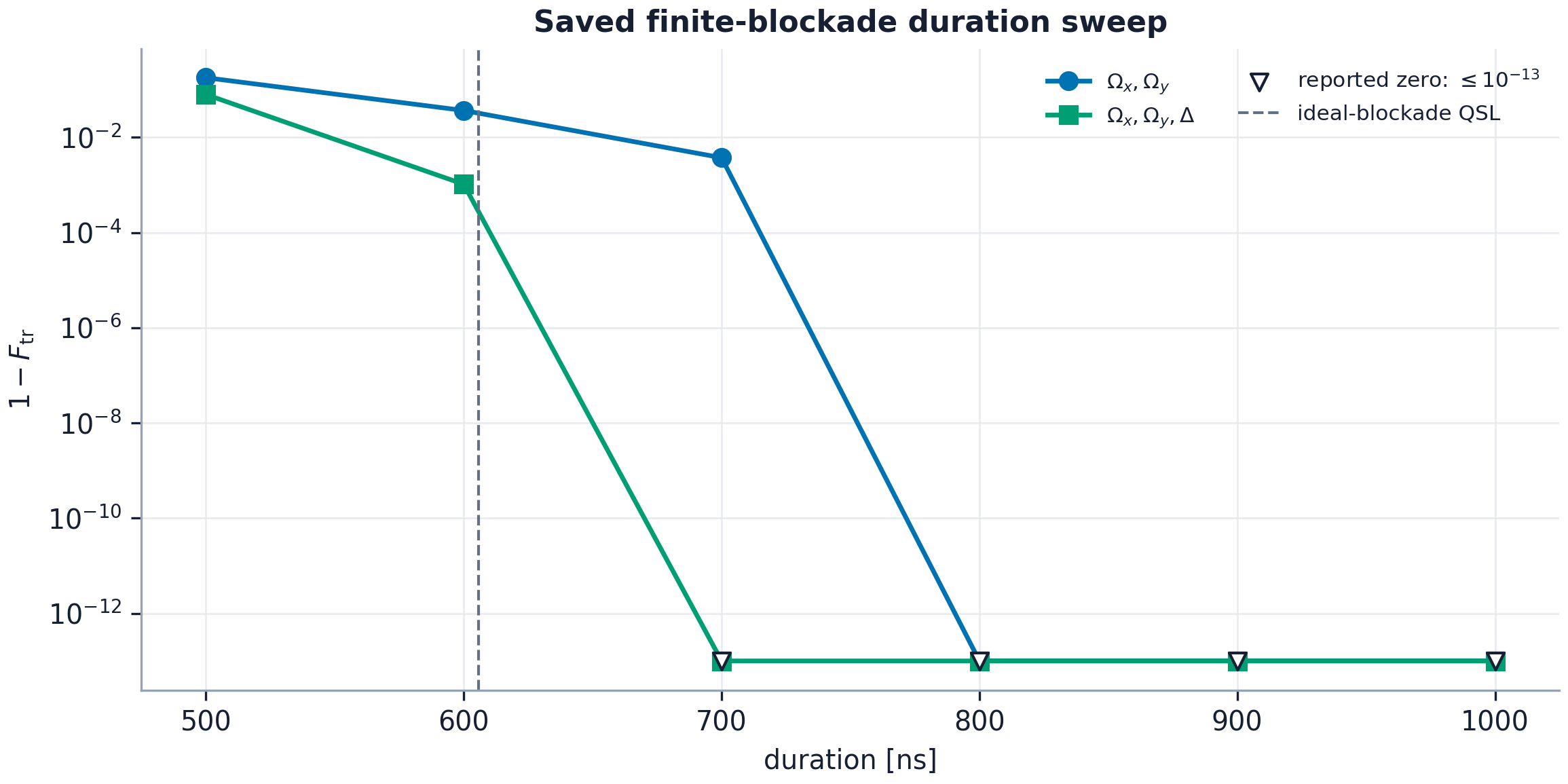

Allowing detuning to vary adds a control direction. In the duration sweep, the three-control search moves the numerical frontier toward shorter gates. Close to a speed limit, one more control is not a small convenience: it can change which paths through Hilbert space are reachable at a given time.
Entries saved as floating-point zero are drawn at $10^{-13}$ with a downward marker and read as $1-F_{\mathrm{tr}}\le10^{-13}$. Literal zero has no location on a logarithmic axis and would overstate numerical knowledge. The lightweight duration check in the separate reproduction code is intentionally excluded: it was never intended to replace the paper’s speed-limit analysis.
Convergence curves also need interpretation. A flat objective may mean that the current parameterization has reached a local optimum, that the gradient is poorly scaled, that a box constraint blocks the useful direction, or simply that numerical precision has been reached. Restarting from several seeds probes the first possibility; checking directional derivatives probes the second; inspecting active bounds probes the third. None of these tests alone certifies a global optimum.
A stopping tolerance should be tied to the next physical error scale. Continuing a closed-system search from $10^{-8}$ to $10^{-12}$ is difficult to justify if expected dissipative error is $10^{-2}$ and the waveform becomes rougher in the process. Conversely, a loose optimizer tolerance can obscure a speed-limit study whose purpose is to resolve a narrow duration frontier. Numerical precision is a resource chosen for the scientific question, not a universal badge of pulse quality.
A fair comparison
The recorded outcomes are best read as demonstrations of strategy:
| Pulse | Duration | Coherent CZ trace infidelity | Structural caveat |
|---|---|---|---|
| analytic baseline | 683.2 ns | $1.80\times10^{-2}$ | finite-blockade error |
| CRAB | 683.2 ns | $2.74\times10^{-4}$ | eight-parameter seeded ansatz |
| Krotov | 1000 ns | $1.65\times10^{-3}$ | clipped component boxes |
| GRAPE | 1000 ns | below saved precision | unconstrained bandwidth and exposure |
Five questions should be answered before reading any two rows as a competition.
First, do they use the same Hamiltonian? The three finite-blockade rows do, whereas the Jandura–Pupillo reference deliberately uses an ideal/strong-blockade reduction. Second, do they optimize the same duration? A longer pulse has more time to accumulate a phase but also more time to decohere. Third, do they expose the same controls? Releasing $\Delta(t)$ can alter reachability near a speed limit. Fourth, do they enforce the same feasible set? Component boxes, a circular amplitude bound, a smooth basis, and explicit slew constraints describe different sets of waveforms. Fifth, are scores computed with the same target phase and leakage convention?
Initialization deserves a sixth question in practice. The CRAB run begins near an analytic solution; a randomly initialized dense-grid method begins elsewhere in the landscape. Multiple starts can estimate sensitivity to that choice, but they do not prove global optimality. Wall-clock time is also implementation dependent: matrix size, derivative code, tolerances, parallelism, and language overhead can dominate the abstract method. For this reason the table reports scientific outcomes and structural caveats, not timings presented as a package benchmark.
They do not share duration, initialization, detuning freedom, or constraint treatment. Declaring a universal winner would confuse solver performance with problem definition. The robust conclusion is narrower: flexible gradients can nearly erase coherent error; a compact basis can make a strong short pulse; and neither approach natively expresses the full set of hardware inequalities we will want next.
Laboratory note
The next step is not simply “run GRAPE longer.” It is to ask for endpoint, amplitude, slew, curvature, fidelity, and duration requirements simultaneously. Direct collocation makes that request explicit.
