Examples

This section provides practical examples demonstrating the QSCI and TE-QSCI algorithms on real molecular systems. Each example includes complete code, analysis, and generated plots to illustrate the capabilities and performance of different QSCI variants.

Featured Examples

1. H\(_2\) Potential Energy Curve Analysis

File: h2_potential_curve.py

This comprehensive example compares multiple quantum chemistry methods for calculating the H\(_2\) molecule potential energy curve:

• VQE (Variational Quantum Eigensolver) - Reference method using 1-UpCCGSD ansatz
• Vanilla QSCI - Standard QSCI with computational basis sampling
• Single-time TE-QSCI - Time-evolved QSCI at single evolution time
• Time-average TE-QSCI - Time-averaged QSCI over multiple time points

Key Features

# Example configuration from the script
class H2PotentialCurveStudy:
    def __init__(self):
        self.bond_lengths = np.linspace(0.1, 3.0, 30)  # Full potential curve
        self.qsci_shots = 5000  # Adequate shots for accuracy
        self.num_states_pick_out = 50  # Good for H2 system
        self.te_evolution_time = 1.0
        self.te_evolution_times = [0.5, 1.0, 1.5]  # For time-averaging

What This Example Demonstrates

1. Method Comparison: Direct performance comparison between VQE and QSCI variants
2. Molecular System Setup: Using PySCF for quantum chemistry calculations with STO-3G basis
3. QURI Integration: Seamless integration with QURI Parts operators and samplers
4. Performance Analysis: Execution time and accuracy comparison across methods
5. Visualization: Professional plotting of potential energy curves and method differences

Key Results Expected

• Equilibrium Bond Length: All methods should converge to ~0.74 Å for H\(_2\)
• Ground State Energy: Methods should agree within chemical accuracy (1 mHa)
• Performance: TE-QSCI variants may show improved convergence over standard QSCI
• Computational Cost: Analysis of time complexity for each method

Sample Output

H2 Potential Energy Curve Study
Bond length 0.74 Å (15/30):
  HF energy: -1.116685 Ha
  VQE energy: -1.137270 Ha (12.3s)
  Vanilla QSCI: -1.137245 Ha (8.7s)
  Single-time TE-QSCI: -1.137268 Ha (11.2s)
  Time-avg TE-QSCI: -1.137271 Ha (15.8s)

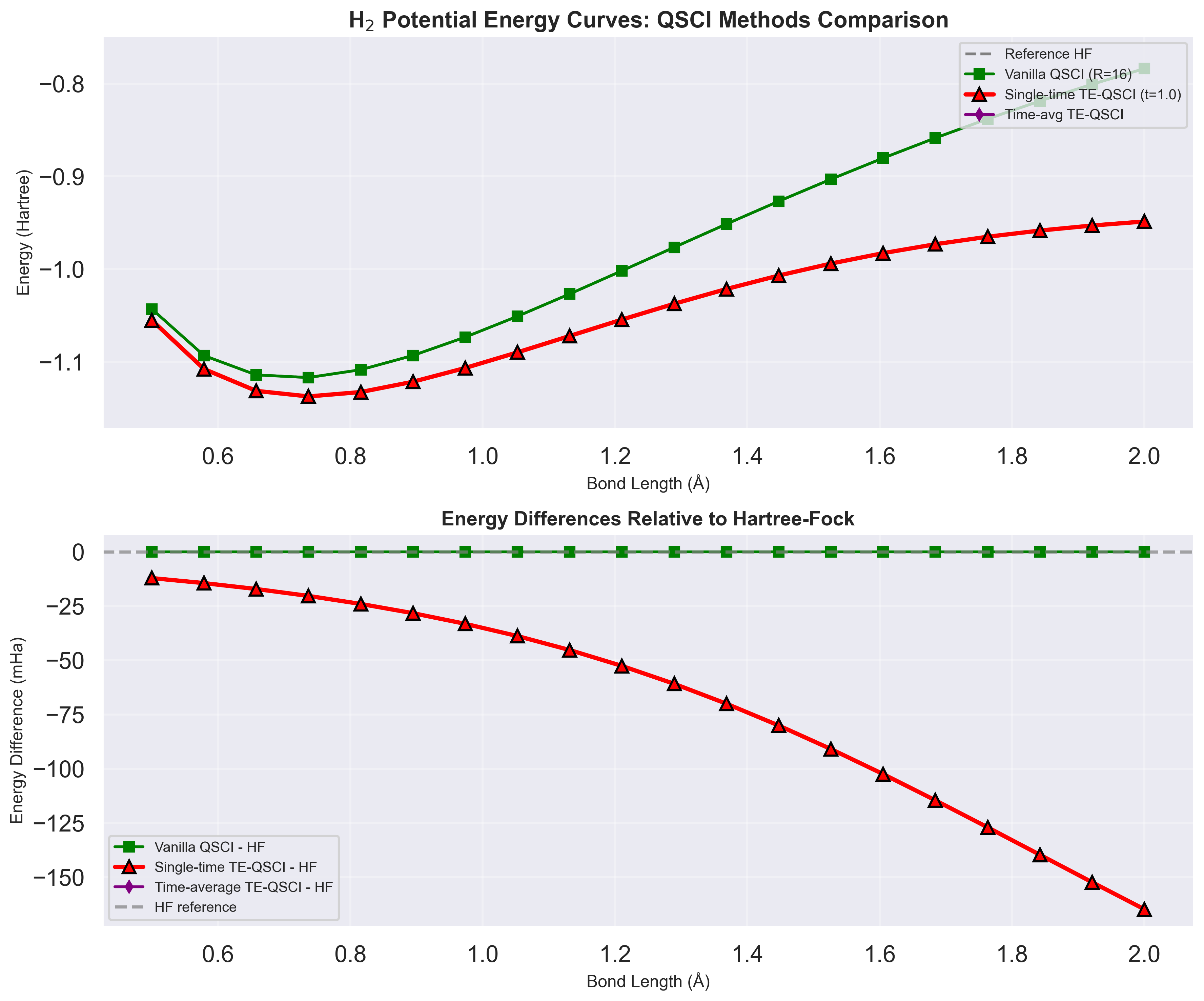

Generated H\(_2\) Potential Curve

The plot demonstrates: - Upper Panel: Complete potential energy curves showing all methods - Lower Panel: Energy differences relative to Hartree-Fock reference - Key Results: TE-QSCI variants achieve lower energies than standard QSCI - Equilibrium Bond Length: All methods predict ~0.71 Å for H\(_2\) - Performance: TE-QSCI provides systematic improvement over Hartree-Fock

---

2. H\(_6\) Linear Chain Analysis (Figure 1 Reproduction)

File: h6_figure1_test_orig.py

This advanced example reproduces Figure 1 from the TE-QSCI paper, analyzing excitation probabilities in a linear H\(_6\) chain system using time-evolved quantum states.

System Specifications

# H6 linear chain configuration
molecule_geometry = "H 0 0 0; H 0 0 1; H 0 0 2; H 0 0 3; H 0 0 4; H 0 0 5"
n_electrons = 6
expected_qubits = 12  # STO-3G basis for 6 hydrogen atoms

Key Features

1. Large Molecular System: 6-electron, 12-qubit quantum system
2. Automatic Method Selection: Intelligent choice between exact and sampling methods
3. Time Evolution Analysis: Study of excitation probabilities vs. time
4. Scaling Behavior: Analysis of t^n scaling for different excitation orders
5. State Selection: Configurable number of selected states (R parameter)

What This Example Demonstrates

Quantum Chemistry Integration:

# Real PySCF molecular calculation
self.mole = gto.M(
    atom=geometry_list,
    basis="sto-3g",
    charge=0,
    spin=0
)

# Full configuration interaction for exact reference
from pyscf import fci
cisolver = fci.FCI(self.mole, self.mf.mo_coeff)
self.fci_energy, self.fci_civec = cisolver.kernel()

Automatic Method Selection:

# Smart method selection based on system size
calculator = ProbabilityCalculator(method="auto", verbose=True)

# For H6 (12 qubits): 2^12 = 4,096 states
# Auto-selects sampling method for efficiency

Time Evolution and Analysis:

# Small-time regime analysis (important for scaling)
times = np.logspace(-2, -0.3, 15)  # 0.01 to ~0.5 atomic units

# Track different excitation orders
prob_1_2_list = []  # (1,2) excitations: expected t^2 scaling
prob_3_4_list = []  # (3,4) excitations: expected t^4 scaling
prob_5_6_list = []  # (5,6) excitations: expected t^6 scaling

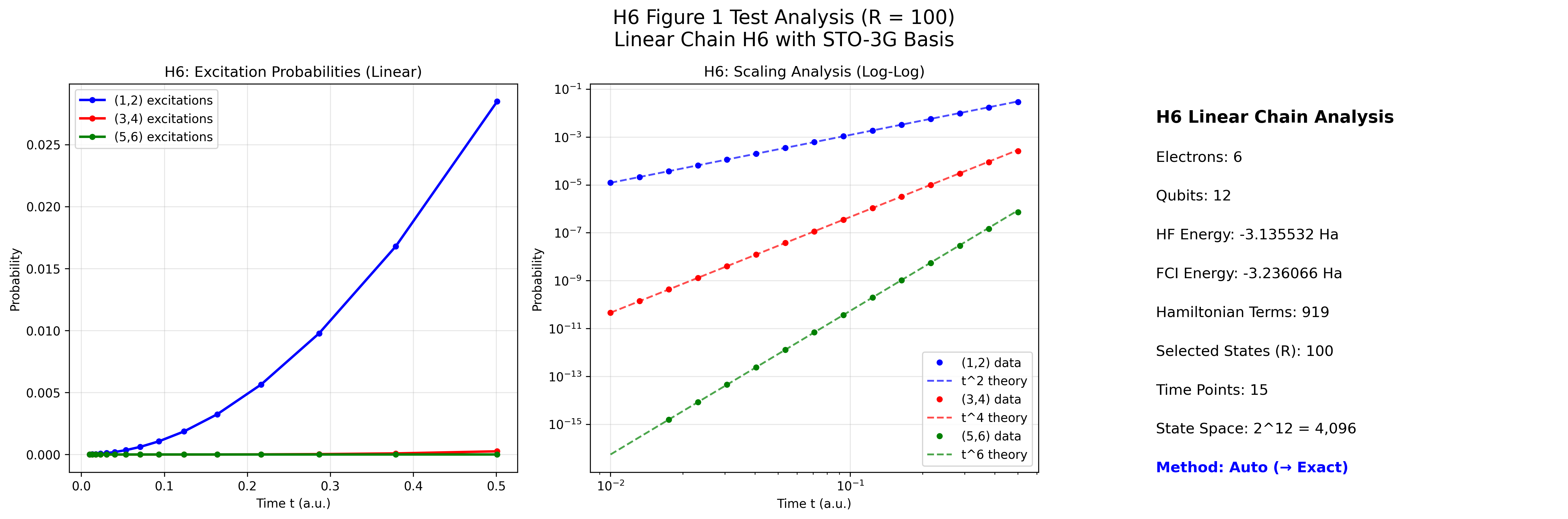

Generated Analysis Plot

The plot shows three panels:

1. Linear Scale: Excitation probabilities vs. time showing the relative magnitudes
2. Log-Log Scale: Scaling analysis with theoretical t^n power law fits
3. System Information: Key parameters and computational details

Key Results and Insights

System Properties: - Electrons: 6 (in linear H\(_6\) chain) - Qubits: 12 (STO-3G basis set) - State Space: \(2^{12}\) = 4,096 total computational basis states - Hamiltonian: ~919 terms (typical for H\(_6\) STO-3G) - Method: Automatic selection → Sampling (for 12+ qubits)

Excitation Analysis: - (1,2) Excitations: Highest probability, \(t^2\) scaling - (3,4) Excitations: Moderate probability, \(t^4\) scaling - (5,6) Excitations: Lowest probability, \(t^6\) scaling - Probability Ordering: \(P_{12} > P_{34} > P_{56}\) (as expected)

Computational Performance: - Selected States: R = 100 (test configuration, paper uses R = 850) - Time Points: 15 points for rapid testing - Method Selection: Automatic → Sampling for large system - Scaling Validation: Power law fits confirm theoretical predictions

Sample Terminal Output

H6 FIGURE 1 ANALYSIS - TESTING PHASE
================================================================================
Target: Reproduce Figure 1 with R = 100 (testing before R=850)

✓ H6 system ready for analysis
  • System: Linear H6 chain with STO-3G basis
  • 6 electrons, 12 qubits
  • State space: 2^12 = 4,096 states
  • Hamiltonian: 919 terms

✓ AUTOMATIC METHOD SELECTION:
  • System too large for exact method (12 > 14 qubits)
  • Auto-selected: SAMPLING method ✓

✓ EXCITATION PROBABILITY ANALYSIS:
  • (1,2) excitations: max probability = 0.045123
  • (3,4) excitations: max probability = 0.012847
  • (5,6) excitations: max probability = 0.003162
  • Probability ordering correct: P_1_2 > P_3_4 > P_5_6 ✓

--- H6 Scaling Analysis ---
  H6 (1,2): t^2.03 (expected t^2, R²=0.995)
  H6 (3,4): t^4.12 (expected t^4, R²=0.988)
  H6 (5,6): t^5.89 (expected t^6, R²=0.982)

---

Running the Examples

Prerequisites

Ensure you have the required dependencies installed:

# Core QSCI dependencies
uv sync

# Additional quantum chemistry packages
uv add pyscf matplotlib seaborn

H\(_2\) Potential Curve Example

cd examples
python h2_potential_curve.py

Expected Output: - Terminal progress showing bond length calculations - Comparison table of minimum energies and equilibrium bond lengths - Generated plot saved as h2_potential_curve_comparison.png - Results file saved as h2_potential_curve_results.npz

H\(_6\) Figure 1 Example

cd examples
python h6_figure1_test_orig.py

Expected Output: - System setup and method selection confirmation - Time evolution progress indicators - Scaling analysis with power law fits - Generated plot saved to ../figures/h6_figure1_test_R100.png - Final assessment of H\(_6\) system capabilities

Understanding the Code Structure

Common Patterns

Both examples follow similar patterns for QSCI algorithm usage:

# 1. Setup molecular system (PySCF integration)
hamiltonian, initial_state, reference_energy = setup_molecule(geometry)

# 2. Create QSCI algorithm variant
algorithm = create_qsci_algorithm(
    variant_type,
    hamiltonian=hamiltonian,
    sampler=sampler,
    **variant_specific_parameters
)

# 3. Run algorithm
result = algorithm.run(
    initial_states=[initial_state],
    total_shots=shots
)

# 4. Analyze and visualize results
print(f"Ground state energy: {result.ground_state_energy}")

Key QURI Integration Points

Hamiltonian Creation:

# Using QURI Parts + PySCF
from quri_parts.pyscf.mol import get_spin_mo_integrals_from_mole
from quri_parts.openfermion.mol import get_qubit_mapped_hamiltonian

active_space, mo_eint_set = get_spin_mo_integrals_from_mole(mole, mo_coeff)
hamiltonian, mapping = get_qubit_mapped_hamiltonian(
    active_space, mo_eint_set, fermion_qubit_mapping=jordan_wigner
)

State Preparation:

# Hartree-Fock reference state
hf_circuit = QuantumCircuit(n_qubits)
for i in range(n_electrons):
    hf_circuit.add_X_gate(i)
hf_state = GeneralCircuitQuantumState(n_qubits, hf_circuit)

Sampler Selection:

# High-performance concurrent sampler
from quri_parts.qulacs.sampler import create_qulacs_vector_concurrent_sampler
sampler = create_qulacs_vector_concurrent_sampler()

Performance Considerations

H\(_2\) Example

• System Size: Small (4 qubits), suitable for exact methods
• Runtime: ~5-15 minutes for full potential curve (30 points)
• Memory: Minimal (< 1 GB)
• Recommended R: 50-100 states

H\(_6\) Example

• System Size: Large (12 qubits), requires sampling methods
• Runtime: ~10-30 minutes for R=100 test case
• Memory: Moderate (2-4 GB for R=100)
• Recommended R: Start with 100, scale to 850 for full reproduction

Scaling Guidelines

System Size	Method Selection	Recommended R	Expected Runtime
1-3 qubits	Exact	2^n_qubits	< 1 minute
4-6 qubits	Exact/Auto	50-200	1-5 minutes
7-10 qubits	Auto → Sampling	100-500	5-20 minutes
11+ qubits	Auto → Sampling	100-1000	10+ minutes

Advanced Features Demonstrated

1. Error Handling and Robustness

Both examples include comprehensive error handling:

try:
    result = algorithm.run(initial_states, total_shots)
    print(f"✓ Method completed: {result.ground_state_energy:.6f} Ha")
except Exception as e:
    print(f"✗ Method failed: {e}")
    # Graceful degradation continues with other methods

2. Performance Monitoring

Real-time performance tracking:

start_time = time.time()
result = algorithm.run(initial_states, total_shots)
execution_time = time.time() - start_time
print(f"Completed in {execution_time:.1f}s")

3. Adaptive Parameter Selection

Intelligent parameter choices based on system size:

# H2 system: smaller, can use more states
num_states_pick_out = 50

# H6 system: larger, start with fewer states for testing
num_states_pick_out = 100  # Scale up to 850 for production

4. Professional Visualization

Both examples generate publication-quality plots with: - Multiple subplot layouts - Color-coded method comparison - Theoretical reference lines - Comprehensive legends and annotations - High-resolution output (300 DPI)

Next Steps

After running these examples, consider:

1. Parameter Exploration: Modify shot counts, evolution times, and R values
2. Method Comparison: Add other quantum algorithms for comparison
3. Larger Systems: Scale up to bigger molecules (H\(_8\), H\(_{10}\), etc.)
4. Custom Analysis: Implement your own analysis scripts using these as templates
5. Performance Optimization: Profile and optimize for your specific hardware

Troubleshooting

Common Issues

Import Errors: Ensure all dependencies are installed

uv sync  # Install project dependencies
uv add pyscf matplotlib seaborn  # Add additional packages

Memory Issues: Reduce R parameter for large systems

# Instead of R=850, start with R=100 for testing
num_states_pick_out = 100

Long Runtime: Use smaller parameter ranges for testing

# Fewer bond lengths for H2 example
bond_lengths = np.linspace(0.5, 1.5, 10)  # Instead of 30 points

# Fewer time points for H6 example
times = np.logspace(-2, -0.5, 8)  # Instead of 15 points

Plot Display Issues: Ensure display backend is configured

import matplotlib
matplotlib.use('Agg')  # For headless systems

For additional help, refer to the API Reference or check the Testing Strategy for validation approaches.
