How to Optimize Statevector Simulation
Insert one zero bit to enumerate every amplitude pair exactly once—and understand where the speedup goes
A statevector simulator can be introduced in one line: store the $2^N$ amplitudes of an $N$-qubit state and apply matrices to them. A literal implementation of that sentence is also a good way to make the simulator unnecessarily slow.
The important observation is local. A one-qubit gate never needs an arbitrary pair of amplitudes. For target qubit $q$, it mixes amplitudes whose basis-state indices differ only at bit $q$. Once those pairs can be generated directly, the gate becomes a single in-place sweep with no full operator, no permutation, and no output statevector.
This chapter develops that indexing trick. A Julia teaching notebook provides the pedagogical starting point, while the measurements come from my Rust implementation, rustatevec. The point is not the syntax of either language. It is the bit algebra that tells both implementations exactly which data to touch.
A gate becomes an indexing problem
Write the state as
\[\lvert\psi\rangle=\sum_{x=0}^{2^N-1}\psi_x\lvert x\rangle.\]Let a one-qubit gate be
\[G=\begin{pmatrix}g_{00}&g_{01}\\g_{10}&g_{11}\end{pmatrix}.\]If $G$ acts on qubit $q$, then every assignment of the other $N-1$ bits defines one independent update,
\[\begin{pmatrix}\psi'_{a_0}\\\psi'_{a_1}\end{pmatrix} = G \begin{pmatrix}\psi_{a_0}\\\psi_{a_1}\end{pmatrix},\]where $a_0$ has a zero at bit $q$ and $a_1$ has a one there. All other bits agree. There are $2^{N-1}$ such assignments, hence $2^{N-1}$ disjoint $2\times2$ updates.
This already rules out the most literal implementation. Constructing $I\otimes\cdots\otimes G\otimes\cdots\otimes I$ creates a $2^N\times2^N$ matrix to perform work that is naturally expressed as small pairs. Reshaping the state into a tensor is much better, but a straightforward reshape/permute implementation can still allocate an output vector and copy data for every gate.
The optimized problem is simpler:
Given a compact integer containing the $N-1$ non-target bits, reconstruct the two full $N$-bit indices of its amplitude pair.
The amplitude-pair invariant
Throughout this chapter, basis-state indices and bit positions are zero-based. Bit zero is the rightmost, least-significant bit. Julia arrays are one-based, so a Julia implementation adds one only when indexing the array; that offset is not part of the bit algebra.
For each compact index $i\in[0,2^{N-1})$, construct an anchor $a_0$ whose target bit is known to be zero. The partner is then
\[a_1=a_0\;\vert\;(1\ll q).\]Here $\ll$ is a left shift and $\vert$ is bitwise OR. OR states the intent directly: set a bit that the construction guarantees is zero. The Julia notebook uses XOR to flip the bit. Under the zero-bit invariant the two operations are equivalent, but OR makes the precondition visible to the reader.
The pair has three useful properties:
- $a_0$ and $a_1$ differ only at bit $q$.
- Two different compact indices cannot generate the same anchor.
- Every full index appears exactly once—as either an anchor or its partner.
Those properties are simultaneously the correctness proof and the reason an in-place update is possible.
Insert a zero bit
The compact index has every non-target bit packed together. To recover $a_0$, split it at position $q$:
\[\begin{aligned} \text{low} &= i\;\&\;\bigl((1\ll q)-1\bigr),\\ \text{high} &= (i\gg q)\ll(q+1),\\ a_0 &= \text{high}\;\vert\;\text{low}. \end{aligned}\]The low mask preserves the $q$ bits below the insertion point. The right shift removes those bits from the high part; shifting left by $q+1$ restores their positions while leaving one new zero at $q$.

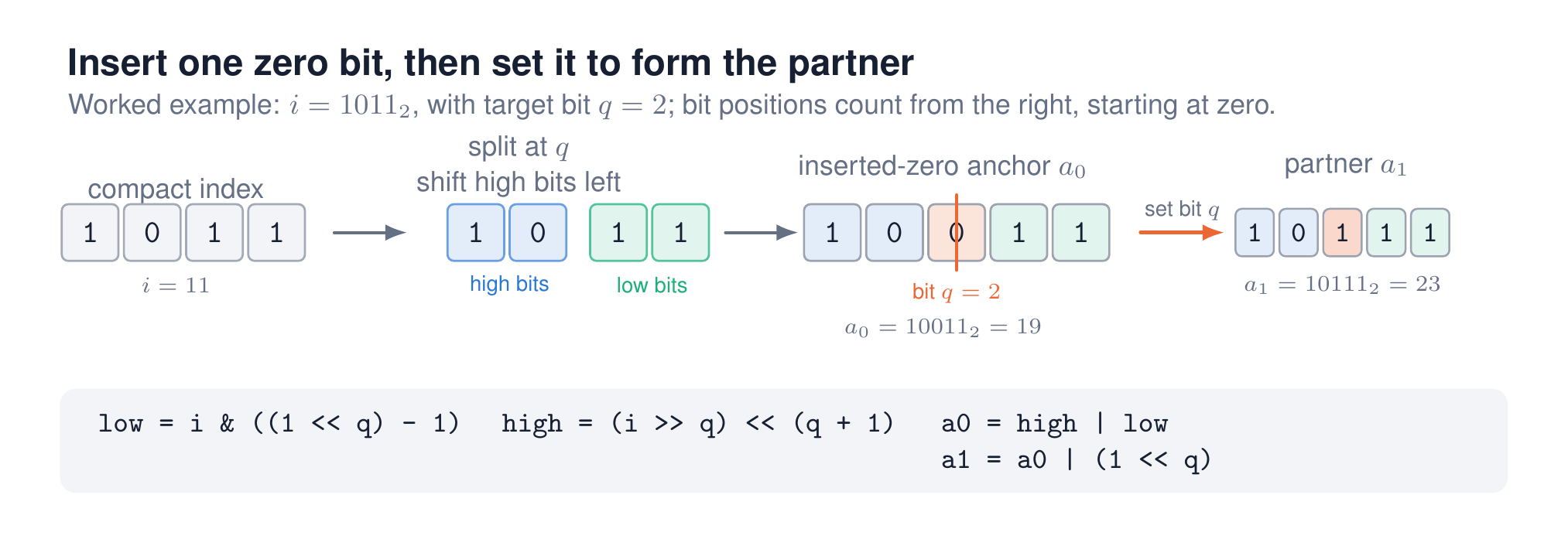

For the worked example, $i=1011_2$. The two low bits are $11_2$ and the high bits are $10_2$. Moving the high group left by one slot creates
\[10\,0\,11_2=10011_2.\]Setting the inserted bit produces $10111_2$. Decimal labels—19 and 23—are less illuminating than the binary view: the pair relationship is a single visible bit.
The Rust helper insert_zero_bit uses an algebraically equivalent decomposition: clear the low part by shifting right and back, recover the remainder, shift the high part once, and OR the pieces together. Its unit tests check the inserted-zero invariant and verify that the generated pairs tile the state space.
Visit every pair exactly once
The whole gate kernel can be summarized without exposing language-specific machinery:
for i in 0 .. 2^(N-1)-1
a0 = insert_zero_bit(i, q)
a1 = a0 | (1 << q)
x0, x1 = ψ[a0], ψ[a1]
ψ[a0], ψ[a1] = G · (x0, x1)
end
The order of the loads matters. Both old amplitudes must be read before either result is stored. After that, writing in place is safe because no later iteration can refer to the same pair.
A useful way to see the coverage proof is to run it backward. Take any full index $x$. Clear bit $q$ to obtain its pair anchor. Delete that bit and the remaining $N-1$ bits form one unique compact index $i$. Therefore every amplitude belongs to one generated pair, and no amplitude can belong to two.
This optimization does not change the asymptotic cost of a generic one-qubit gate. The simulator still reads and writes $2^N$ amplitudes, so the work remains $O(2^N)$. The improvement comes from doing the necessary work directly:
- iterate over $2^{N-1}$ pairs rather than inspect or filter $2^N$ indices;
- avoid a $2^N\times2^N$ Kronecker operator;
- avoid per-gate permutation and output-vector allocation;
- preserve a simple, predictable access pattern;
- load each old pair once and store each new pair once.
What the benchmark measures
To isolate that progression, I benchmarked one Hadamard gate in three Rust backends:
- Independent oracle: a correctness-first implementation with a separate output and gather/scatter logic that does not reuse the optimized index traversal.
- Reshape + allocate: a tensor-style intermediate that organizes the gate by blocks but allocates a full output state for each application.
- In-place bit shift: the direct $2^{N-1}$-pair traversal developed above.

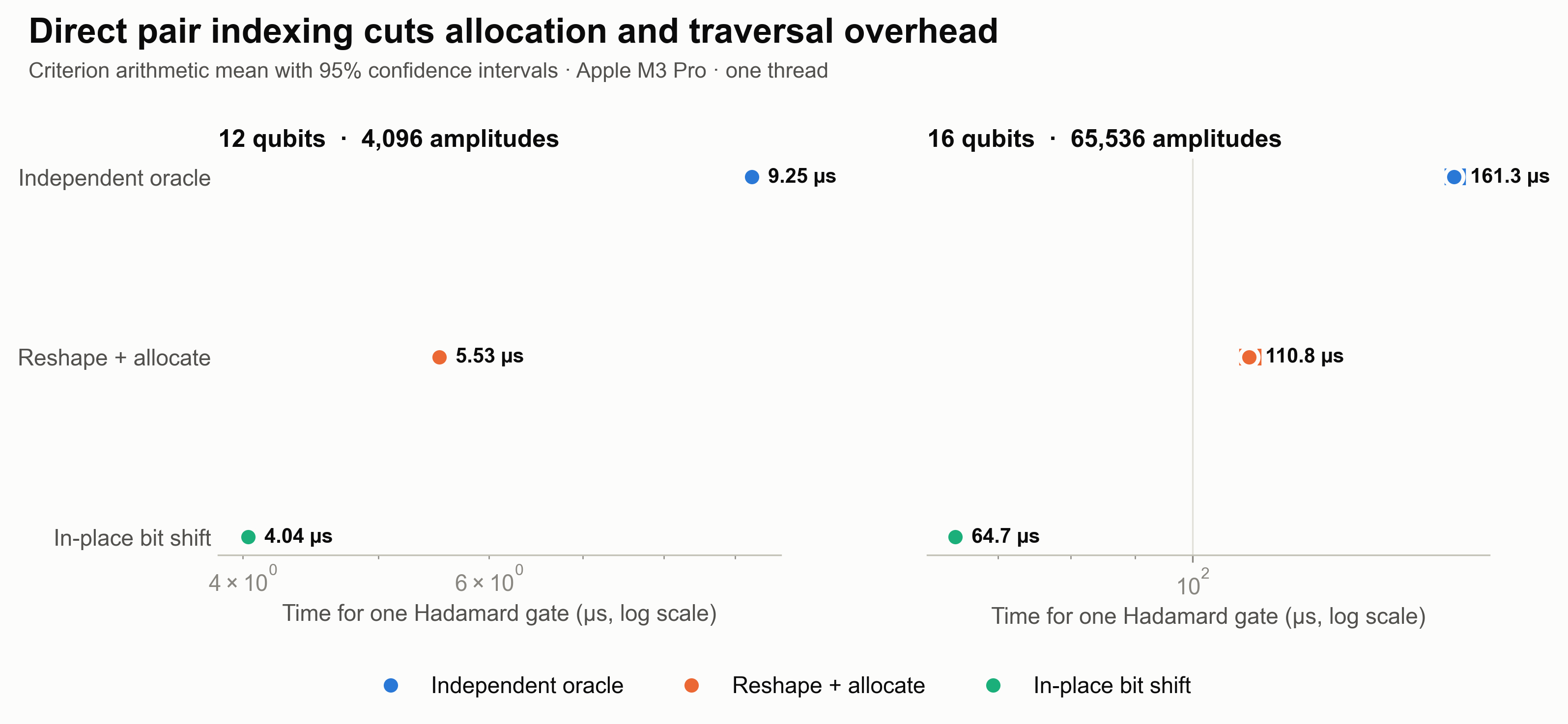

| Qubits | Independent oracle | Reshape + allocate | In-place bit shift |
|---|---|---|---|
| 12 | 9.25 µs [9.21, 9.30] | 5.53 µs [5.50, 5.56] | 4.04 µs [4.01, 4.07] |
| 16 | 161.3 µs [159.1, 164.2] | 110.8 µs [109.3, 112.9] | 64.7 µs [64.4, 65.0] |
At 12 qubits, direct pair traversal is 1.37× faster than reshape-and-allocate and 2.29× faster than the oracle. At 16 qubits those factors are 1.71× and 2.49×. These are not universal constants: they describe these implementations, this gate, this compiler, and this machine. The durable benchmark data records the commit, command, toolchain, hardware, mean estimates, and confidence intervals.
The independent oracle remains important even when it is slower. Differential tests run random circuits and structured workloads through optimized backends and compare their states with the implementation that does not share the same indexing trick. A fast kernel and an independent correctness path serve different purposes.
The bandwidth wall
Once pair enumeration is efficient, statevector simulation exposes its next limit: every generic gate must move a large amount of amplitude data. More instruction-level optimization cannot remove those reads and writes.
I encountered the same effect while working on QuEST issue #717, opened by Tyson Ray Jones. The issue targeted hot bit gather/scatter helpers. My merged PR #796 added optional x86 BMI2 paths: PDEP deposits packed bits into selected positions, while PEXT extracts selected bits in mask order.
The important optimization was not merely replacing a short loop with an instruction. Position masks and sortedness checks are invariant across the exponentially large amplitude loop. Rebuilding or rechecking them for every amplitude can erase the benefit or even regress performance. The useful design is therefore:
- prepare masks and validate ordering once per gate or kernel;
- use PDEP/PEXT inside the hot loop when the build and CPU support BMI2;
- retain the scalar implementation as the portable fallback.

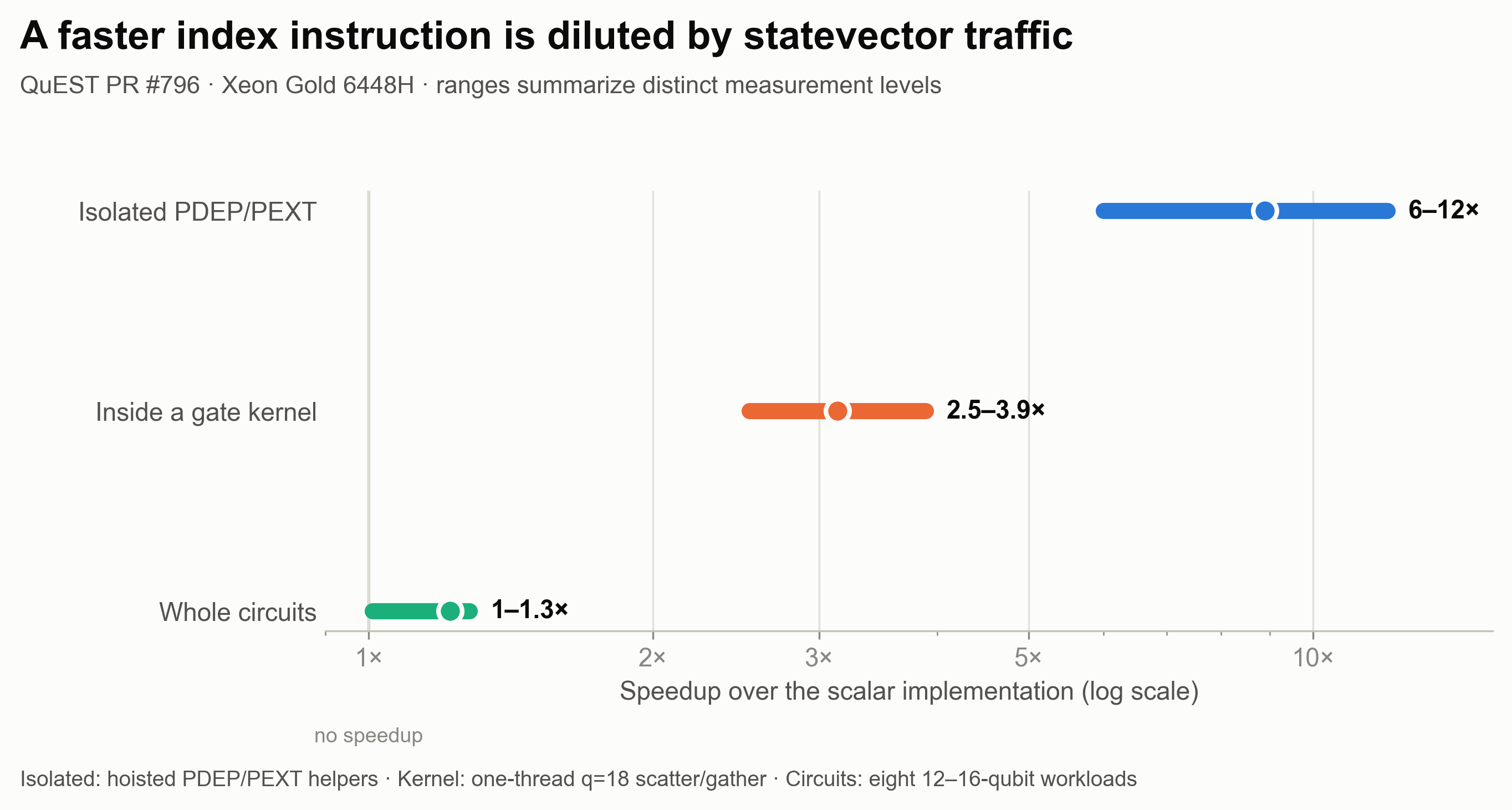

The isolated gather/scatter operation improved by roughly 6–12× in cache. Inside a real, one-thread gate kernel, the gain was 2.53–3.89× because index generation now guarded strided complex loads and stores. Across the reported 12- and 16-qubit circuits, the measured range was 1.01–1.28×. With larger states or enough threads to saturate memory bandwidth, the gain approached one and could occasionally become a regression.
That ladder is an example of Amdahl’s law with a memory system attached. Accelerating index arithmetic changes only the fraction of runtime spent generating indices. As the state grows, irreducible amplitude traffic occupies a larger fraction of the gate. As threads are added, they compete for finite bandwidth, so saved arithmetic no longer translates proportionally into saved wall time.
PR #796 was merged into QuEST’s devel branch on June 28, 2026 after maintainer review, integration work, and upstream CI. The optional path is architecture-restricted; the scalar fallback remains necessary both for portability and for processors where PDEP or PEXT is not a fast hardware instruction.
Where to optimize next
Zero-bit insertion is the foundation, not the endpoint. Once a simulator can enumerate pairs correctly and without allocation, later layers can specialize the remaining work:
- traverse cache-friendly blocks rather than rely only on a flat index loop;
- recognize diagonal gates, which do not need a two-amplitude mix;
- add threading until memory bandwidth, not core count, becomes the limit;
- test SIMD against the actual layout rather than assume wider instructions must win;
- fuse adjacent gates when saved memory passes outweigh the extra local arithmetic.
Those optimizations deserve separate measurements because they answer different questions. The central lesson here is smaller and more reusable: derive the data pairing from the basis-index bits, make its invariant explicit, and arrange the loop so the machine performs exactly one correct update per pair.
