Belief Propagation
Exact inference on trees, principled approximations on loopy graphs, and a common language for optimization, coding, learning, and tensor contraction
One algorithm, several languages
Belief propagation is easy to recognize and surprisingly hard to place. In a probabilistic graphical model it is the sum–product algorithm. On a tree it is ordinary dynamic programming. In statistical physics it is the replica-symmetric cavity method. In coding theory it is iterative decoding. In combinatorial optimization its zero-temperature limit becomes min-sum or max-product. Graph neural networks borrow the same local aggregation pattern, while tensor-network algorithms use closely related messages to approximate an environment.
These are not merely metaphors. They share a concrete computational move: cut an edge, summarize everything on one side as a function of the boundary variable, and pass that summary across the cut. What changes from field to field is the algebra carried by the message, the assumptions under which branches become independent, and the meaning attached to a fixed point.
This series develops that common spine from the exact case outward. The goal is not to memorize an update rule. It is to understand where the rule comes from, what it computes, why it is exact on trees, what the Bethe free energy adds, and which claims stop being theorems when the graph contains loops.
Reading map

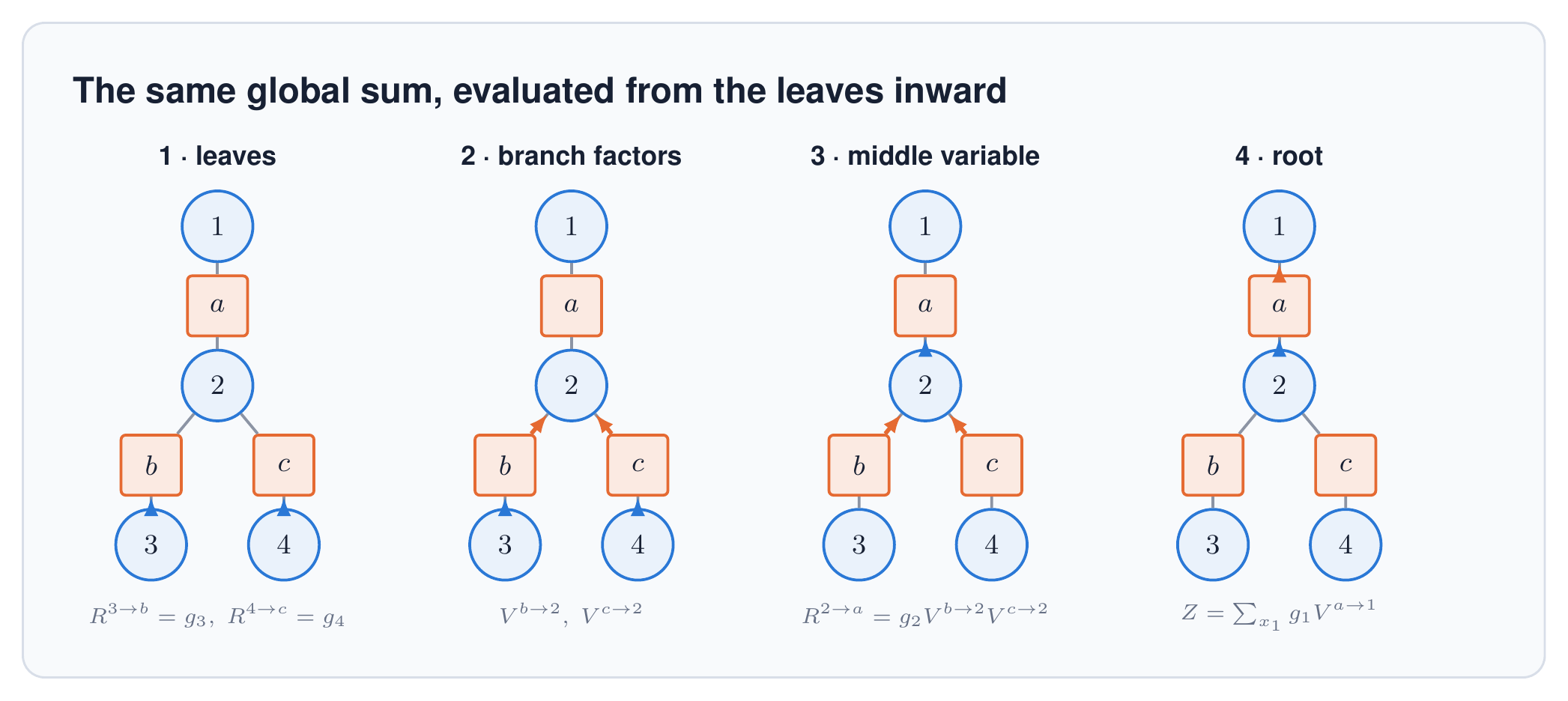

Belief Propagation from First Principles
Cut a tree, pin its boundary, and derive sum–product and the Bethe variational principle without guessing the update rules
Read this chapter →

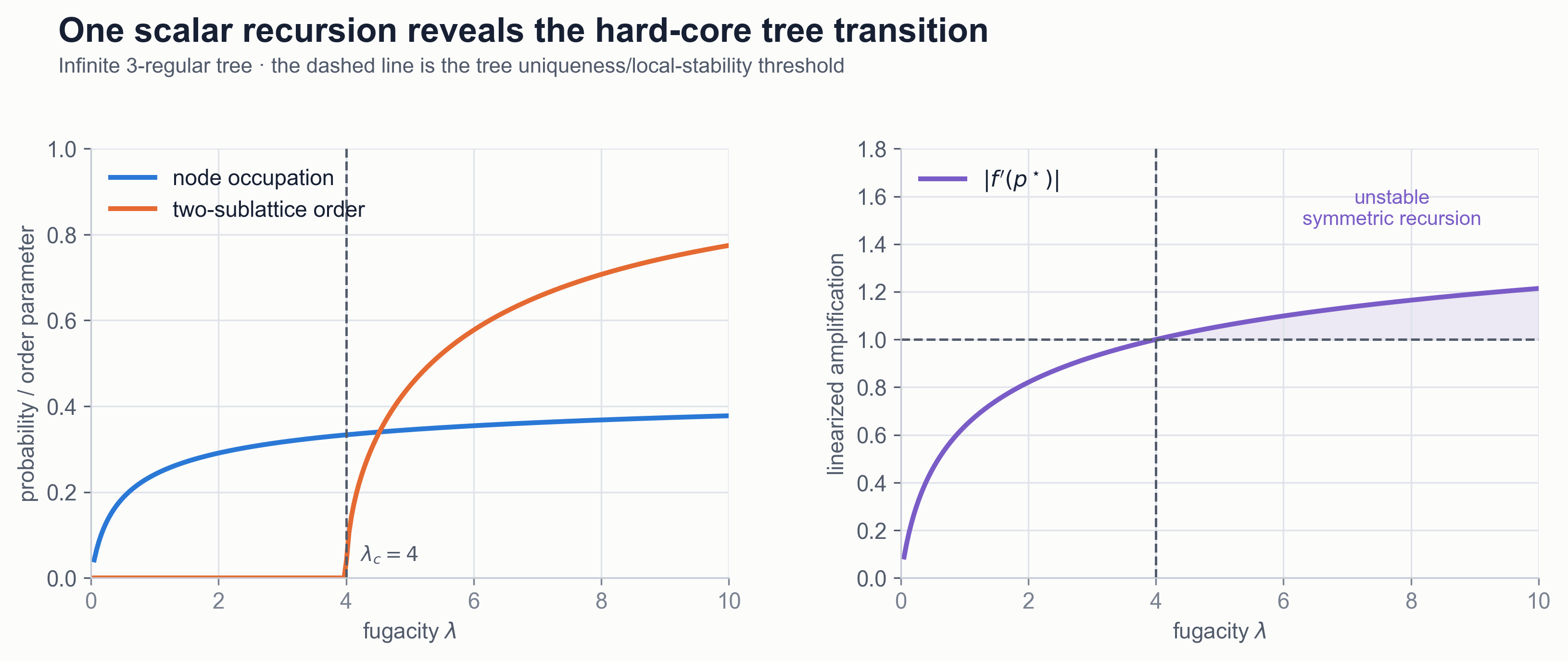

Belief Propagation for Combinatorial Optimization
From Boltzmann weights to min-sum, independent sets, matching, colouring, phase transitions, and the limits of fixed-point iteration
Read this chapter →

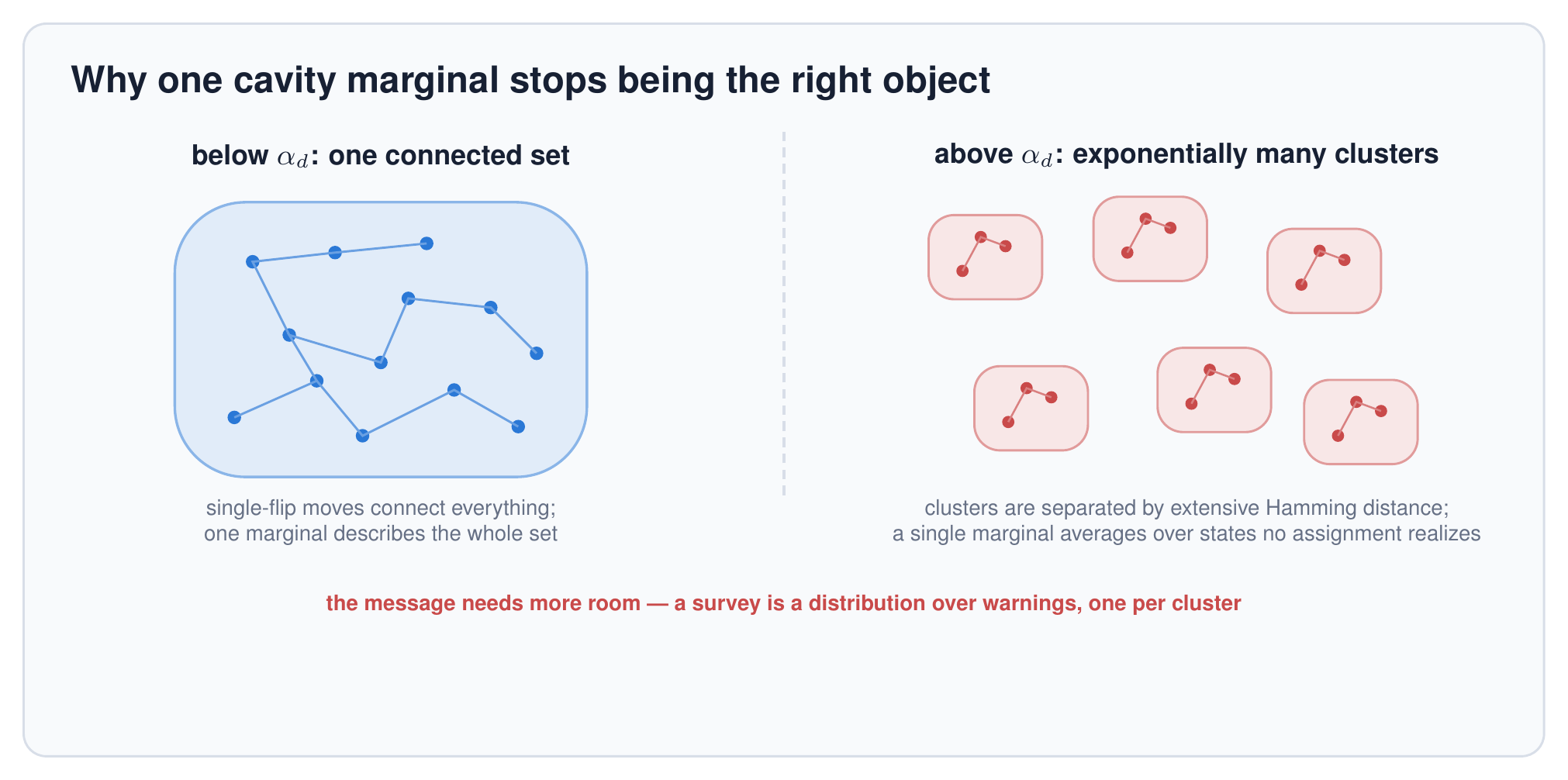

Survey Propagation and the Shattered Solution Space
When one cavity marginal stops being enough — clustering, warnings, surveys over pure states, and the thresholds they separate
Read this chapter →

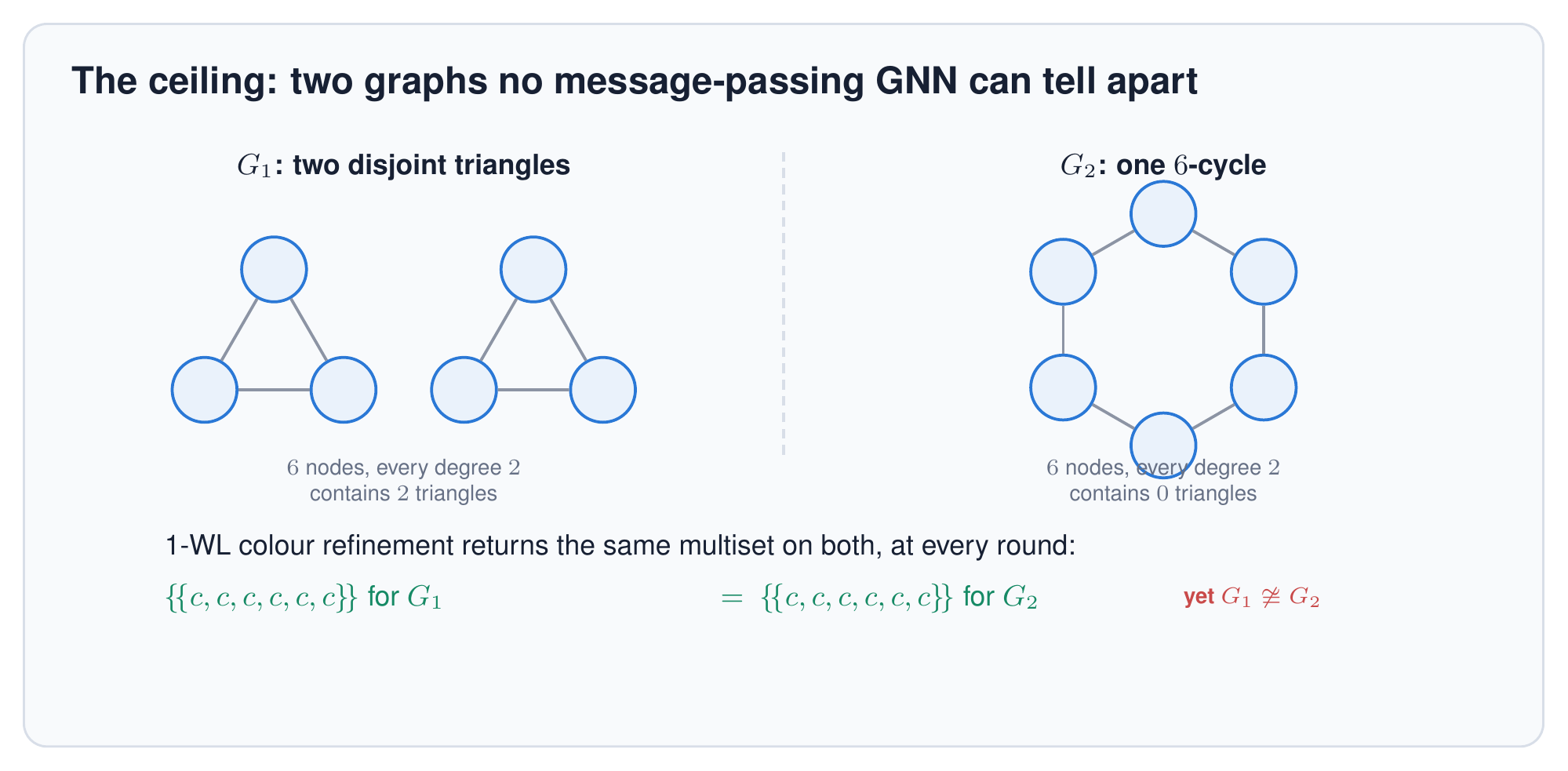

Message Passing in Graph Neural Networks
What graph neural networks borrow from belief propagation, what they discard, and what the 1-WL ceiling says they can never see
Read this chapter →Planned chapters
- Error-correcting codes: parity-check factor graphs, log-likelihood ratios, density evolution, trapping sets, and the gap between tree-like analysis and finite codes.
- Quantum circuits and tensor networks: environments, gauges, contraction on loopy networks, and belief-propagation approximations to PEPS and circuit amplitudes. This topic will likely require several chapters.
The roadmap names intended directions; it does not present unfinished chapters as published results.
The recurring questions
Every chapter will return to five questions.
- What global quantity is being computed? A marginal, a partition function, a minimum-energy assignment, a codeword posterior, or an approximate tensor environment are different targets.
- What does one message summarize? A message is always conditional on an edge being removed, but it may store probabilities, log-likelihood ratios, energies, warnings, tensors, or learned features.
- Where does factorization enter? On a tree, pinning the boundary disconnects branches exactly. On a loopy graph, using the same product is an approximation whose quality depends on correlation decay and loop structure.
- What does convergence mean? A numerical iteration can converge to an inaccurate belief, fail to converge despite an accurate Bethe approximation, or settle at a non-global stationary point.
- What is independently checkable? Small instances can be enumerated exactly; tree identities can be tested to machine precision; thresholds and phase diagrams require their ensemble and stability assumptions to be stated explicitly.
That last question matters for a public technical series. “BP works” is never a complete claim. The graph family, objective, update schedule, initialization, and comparison target all belong in the sentence.
Conventions and reproducibility
The first two chapters use finite-alphabet factor graphs. Variable nodes are circles, factor nodes are squares, and a directed message is named by its sender and receiver. Free entropy means $\log Z$ (or its density); free energy differs by the conventional factor $-1/\beta$. Whenever a zero-temperature limit is taken, additive message gauges are fixed explicitly.
The derivations are adapted from standard factor-graph, variational-inference, and statistical-physics references
